PP PE PVC Single Wall Corrugated Pipe Extrusion Line 20/25/32/40mm Small Size
20/25/32/40mm Small Size PP PE PVC Single Wall Corrugated Pipe Extrusion Line
| Type | FG-10 | FG-25 | FG-63 | FG-75 | FG-160 |
| Screw diameter(mm) | 45 | 45 | 65 | 65 | 75 |
| L/D | 30:1 | 30:1 | 33:1 | 33:1 | 33:1 |
| Install power(kw) | 45 | 50 | 70 | 80 | 100 |
| Pipe diameter(mm) | 6-10 | 8-20 | 16-63 | 50-75 | 90-160 |
| Haul-off speed(m/min) | 20 | 15 | 10 | 10 | 5 |
Properties:
Mini single wall high speed corrugated pipe forming machine: can produce two diameter or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the mould blocks and reduce the time for changing the mould blocks, increase the efficiency.
Usgae:
The pipe from this machine is anti-high temperature, anti-wear, and high strength, and it is widely used in electrical conduct, car conduct pipe, protective pipe, machine area and automatic meter area. With our special design screw and advanced mould, the line is high speed, run stable and easy-control.
Using PVC, PE, or PP as a raw material, the single-wall corrugated pipe has excellent characteristics of corrosion resisting, anti-abrasion, high strength and flexibility, etc. It has been widely applied for cable protection, outlet tubes of washing machines, ventilating pipes of vacuum cleaner, and so on. Our single-wall corrugated pipe line has advantages of accurate forming, reliable performance, high speed and efficiency, and easy operation.The performance index reaches the leading level in the world.

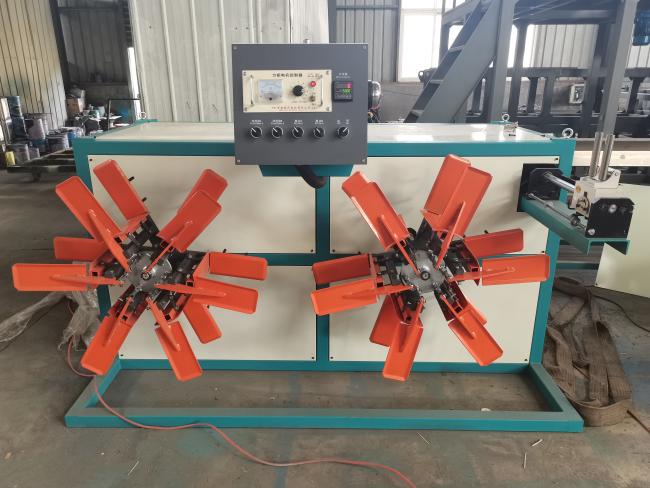

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing
