China Copper gold iron ore crushing machine PC800x600 PC600x400 hammer crusher for sale

Copper gold iron ore crushing machine PC800x600 PC600x400 hammer crusher

Price Negotiable

Price: USD 2600-3600

MOQ: 1 set

Delivery Time: 7-10 working days

Brand: Ascend

Product Description

High efficiency good quality Hammer crusher mill for sand making and aggregates

Hammer Crusher is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement, chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according to user's requirement,Change the size of the material, This can meet the different needs of different users.

Working Principle

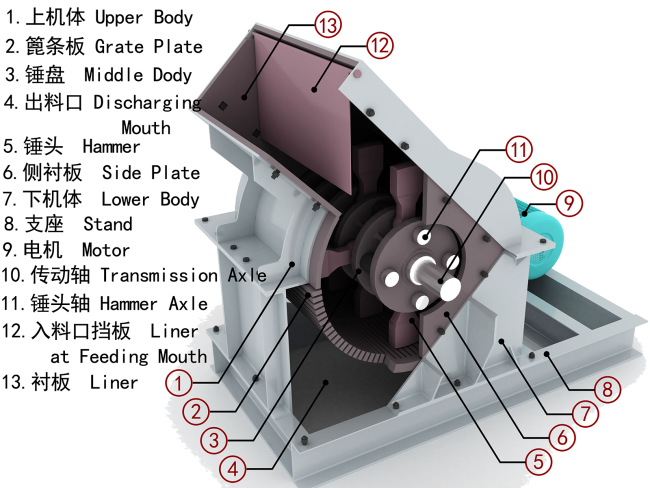

In the hammer crusher mill machine, the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers. When the material get into the working area of hammers, the rotating hammers with high rotation speed are crushing the material, the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts, the large size prdocut are brough back to the crushing area by the hammers for being re-crushed until they reached the required size.

Specifications

Model	Input size(mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Weight(kg)
PC400×300	≤100	≤10	5-10	11	800
PC600×400	≤120	≤15	10-25	18.5	1500
PC800×600	≤120	≤15	20-35	55	3100
PC1000×800	≤200	≤13	20-40	115	7900
PC1000×1000	≤200	≤15	30-80	132	8650
PCX1300×1200	≤250	≤19	80-200	240	13600

Final products of Hammer crushers

Spare Parts

our factory

company profile

Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City,Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-salesservice of mining machinery and equipment. The company's main products are crushers, grinding mill equipment, mineralbeneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascendmachinery expands its business in more than 160 countries and regions.
Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
