Gold Washing Plant Mining Machinery For Alluvial Placer Ore With 100 200 Tons Per Hour Capacity
Gold trommel washing plant for alluvial gold river gold mining with100 200 tph capacity
Gold washing plant is a set of mining machinery which can be moved or fixed. It includes feeding hopper, a trommel screen and a vibrating feeder.It mainly uses water pumps and high-pressure jet sand or river pebbles to selectively wash gold particles or gold powder.
Features of Drum Scrubber Washing Machine
- Gold trommel Screen is an easily movable machine designed for processing alluvial gold, river gold, diamonds, etc. It includes hopper, water pump, water pipe, diesel engine/motor, wheels.
- Gold trommel screen is usually used in the primary separation stage of placer gold mining to wash and screen gold ore. The upper size is always considered as useless material. The bottom size containing gold is usually processed continuously by centrifugal concentrator or gold tank to upgrade gold ore. The concentrate of centrifugal concentrator can be processed by shaking table, which is used to separate gold from other minerals.
Gold mining trommel screen description:
- Gold trommel screen can be used for washing and screening of gold ore.
- Gold trommel screen offers expanded processing capacity comparable to all competitor mobile gold washing plant rotary screen equipment.
- The average processing capacity of gold rotary screen is 100-300 m³/h or 170-510 t/h, converted at 1.7 t material weight per m³.
Designing & Building Custom Gold Mining Trommel :
Give us the details of your mine and we can design and build a plant specifically for your mineral. If you need help setting up and operating a plant on site, we offer these services based on decades of successful mining experience.
Get to know your mine and help us understand your situation. Carefully research the graves, surroundings and historical information.
Product pictures
Advantages of gold trommel equipment:
- It is easy to use, suitable for applications from small to large materials, and is an economical choice.
- Multiple filters have different weight-rated rollers for better separation of objects.
- Multiple layers of screen to enhance the sifting process.
- There is a replaceable screen plate that allows you to replace worn parts.
- The trommel screen is efficient and has a large capacity to handle different sizes of materials.
- The screen has a unique design that allows high capacity, high resolution performance, and high resolution. The life of the screen also prevents things from getting stuck.
Description of the placer gold washing plant.
After the equipment is fully installed, river sand is usually feed into the hopper using an excavator or crane, and then the sand is transported to the trommel screen. As the trommel screen rotates, large sand particles larger than 8 mm are screened out, and small sand particles smaller than 8 mm are transferred to a centrifugal gold concentrator or a vibrating gold sluice (we usually recommend the concentrator because it can achieve high recovery rates of sand various gold particles from 40 mesh to 200 mesh). The concentrator is followed by a gold sluice with a gold blanket to recover the remaining gold in the concentrator.
Specification
| SPECIFICATIONS OF GOLD EXTRACTION EQUIPMENT FOR WASHING GOLD SEPARATOR MACHINE | ||||
| Model | GTS20 | GTS50 | MGT100 | MGT200 |
| Parameters | ||||
| Size /mm | 6000x1600x2499 | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 20-40 | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 20 | 30 kw | 50 kw | 80 kw |
| Trommel Screen /mm | 1000x2000 | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 set | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 80m³ | 120 m³ | 240 m³ | 370 m³ |
| Recovery Rate | 95% | 98% | 98% | 98% |
Gold centrifugal concentrator is suitable for collecting gold ore with mesh size from 200 to 40. It uses gravity centrifugal force to collect gold concentrate from river sand or soil. The recovery rate of free gold particles can be as high as 90%. It is the perfect partner for gold trommel screen plant.
Gold sluice with blanket
Shaking table
After collect the gold concentrate fromo the centrifugal concentrator and gold sluice blanket, the most common way is then put it on the shaking table to further improve the gold grade.
Mercury Amalgamation barrel or small ball mill.
The gold ore concentrate collected from the shaking table will be put in the small ball mill, or we call it mercury amalgamation barrel. Then it can mix with the mercury and form the gold and mercury mixture.
Electric gold melting furnace
After get the mixture of gold and mercury, you can put it in the elctric gold melting furnace and heat it, then you can get the pure gold bar.
Contact us

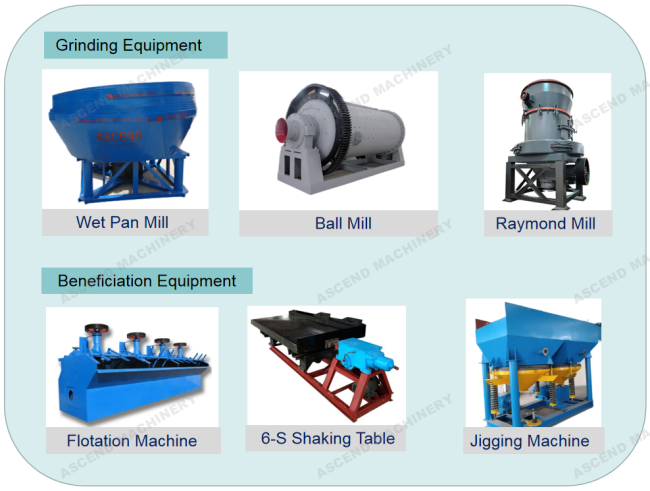

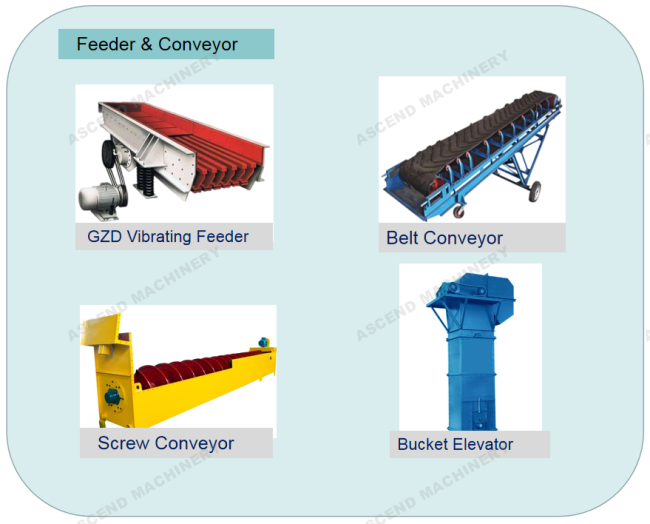

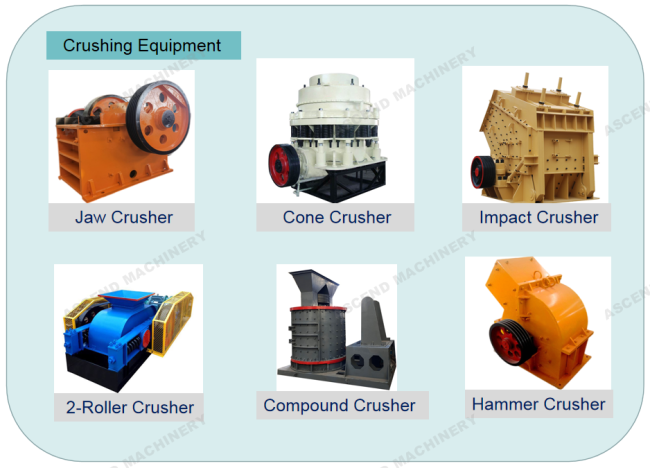

We also supply
