PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment
Widely used jaw crusher in minging business
High efficiency Jaw crusher
Jaw crusher is traditional primary stone crusher machine, widely used in mining, construction, road building, infrastructuring and other industries. It is mainly used to crush material like granite, limestone, basalt, gold, copper, iron, lead and zinc ore, etc.
Jaw crusher advantages
Jaw crusher is widely used in various materials processing of mining&construction industries, such as it is suit for crushing granite,marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and someother mineral &rocks.

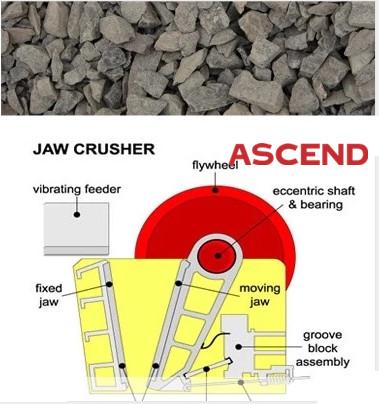

working principle
When PE jaw crusher works, through the motor's wheels, the triangle belt and slot wheel drive the eccentric shaft, it makes the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity which composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and the final products will be discharged from the discharging port.

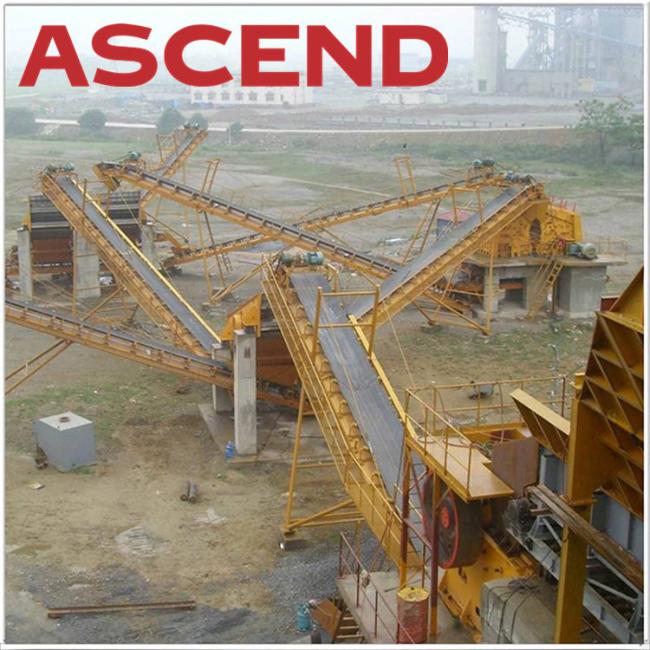

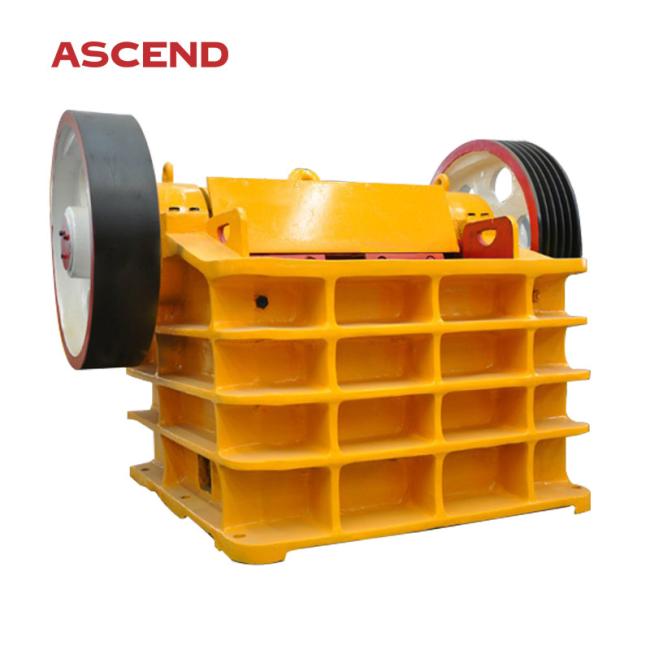

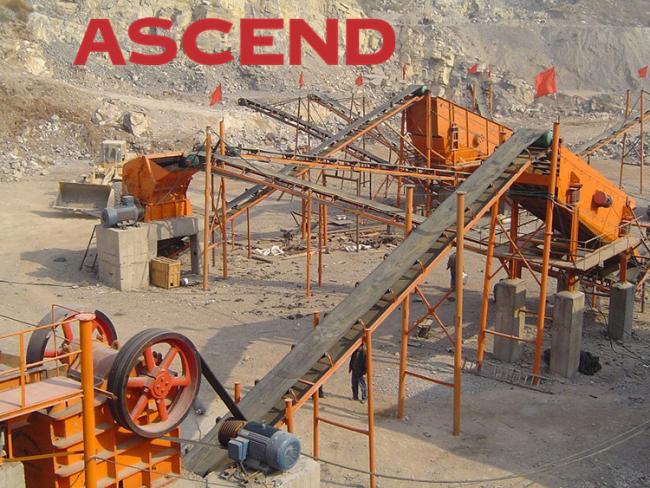

Product pictures
Jaw crusher specifications
| Model | Feeding mouth size (mm) |
Max Feeding size (mm) |
Adjusting range of output size (mm) |
Capacity (t/h) |
rotation speed (r/min) |
Power (kw) |
Weight (t) |
Dimension (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 260 | 5.5 | 0.7 | 1000×870×990 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 1050×920×990 |
| PE-220×350 | 220×350 | 200 | 18-55 | 4-10 | 260 | 11 | 1.3 | 1100×970×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 31 | 2660×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE- | ||||||||
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
