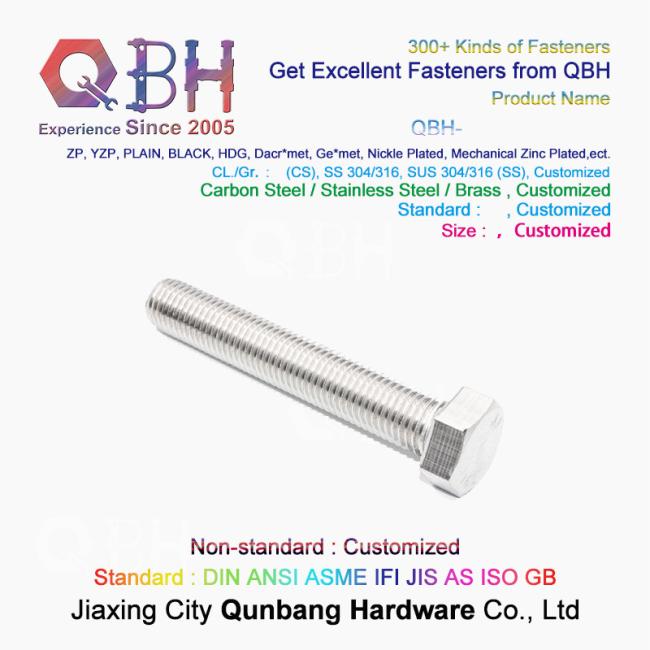

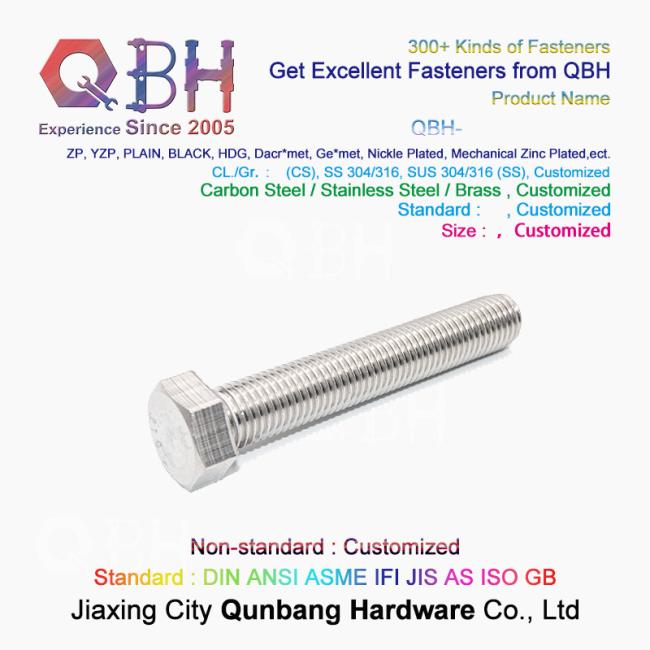

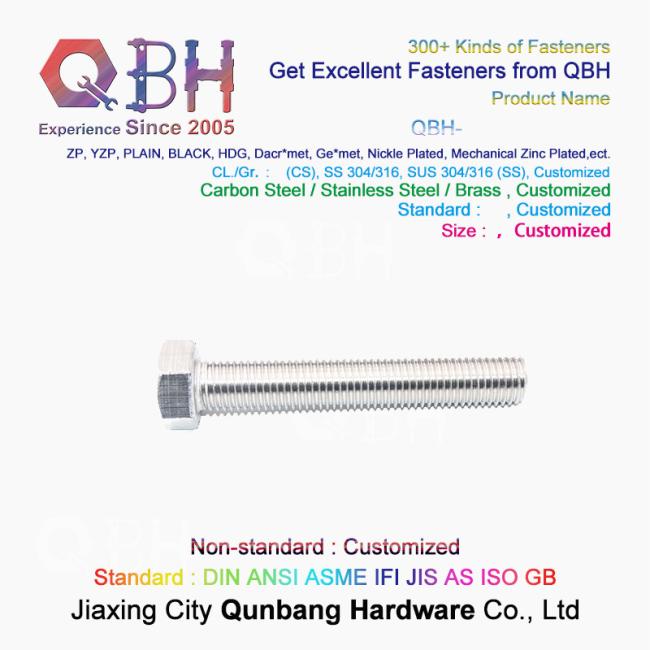

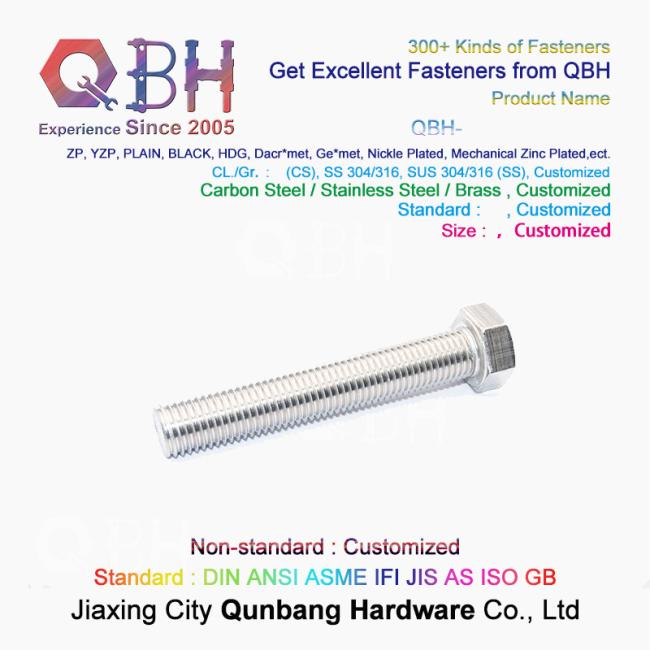

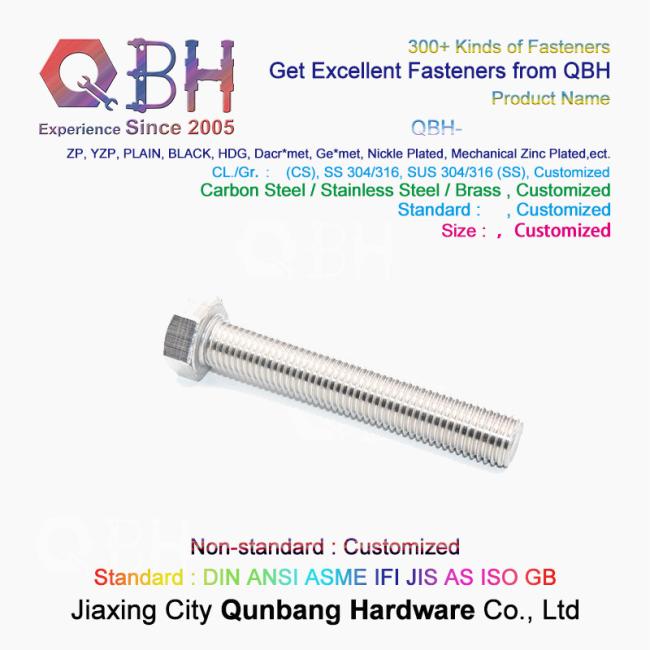

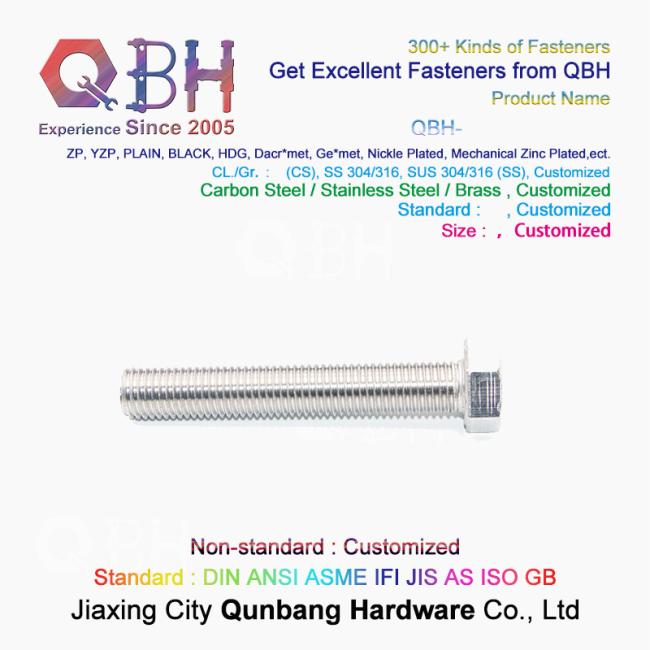

Long Screw 316 Ss Hex Bolt M4 M5 M6 M8 M10 M12 Full Pressure

Price Negotiable
Price: Negotiation
MOQ: 900kg
Delivery Time: 30days
Brand: QBH
Product Description



Hex bolts are hex head bolts (partial thread) -C and hex head bolts (full thread) -C. Also known as hex head bolt (rough) hair hex head bolt, black iron screw.

Commonly used standards can be seen: SH3404, HG20613, HG20634, etc.

Hexagon bolt: A type of fastener consisting of a head and a screw (a cylinder with an external thread), which must be combined with a nut to fasten and connect two parts with through holes.

Hexagon bolt

Hexagon bolt

This type of connection is called bolt connection. If the nut is unscrewed from the bolt, the two parts can be separated, so the bolt connection is a removable connection.

Screw Thread
d
M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
P Pitch
α tol.(+2)
b L≤125mm
125<L ≤ 200
L>200
dk max=nominal size
min
ds max=nominal size
min
e min
k max
s Nominal Size
min
max
t max=nominal size
min
0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
90° 90° 90° 90° 90° 90° 90° 90° 90° 90° 90° 60° 60°
12 14 16 18 22 26 30 34 38 42 46 50 54
/ / / 24 28 32 36 40 44 48 52 56 60
/ / / / / 45 49 53 57 61 65 69 73
6 8 10 12 16 20 24 27 30 33 36 36 39
5.7 7.64 9.64 11.57 15.57 19.48 23.48 26.48 29.48 32.38 35.38 35.38 38.38
3 4 5 6 8 10 12 14 16 18 20 22 24
2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67 21.67 23.67
2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 11.43 13.72 13.72 16 16
1.7 2.3 2.8 3.3 4.4 5.5 6.5 7 7.5 8 8.5 13.1 14
2 2.5 3 4 5 6 8 10 10 12 12 14 14
2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 10.025 12.032 12.032 14.032 14.032
2.1 2.6 3.1 4.12 5.14 6.14 8.175 10.175 10.175 12.212 12.212 14.212 14.212
1.2 1.8 2.3 2.5 3.5 4.4 4.6 4.8 5.3 5.5 5.9 8.8 10.3
0.95 1.55 2.05 2.25 3.2 4.1 4.3 4.5 5 5.2 5.6 8.44 9.87















The advantages of QBH


  • QBH brand sales to the main quality assurance.
  • Years of export trade management, excellent service, word-of-mouth guarantee.
  • By working with TUV,escort for quality.
  • Customization of non-standard parts can be made according to customer's requirements and drawings.
  • For quality customers,we can provide a certain credit period.
