DIN689 Standard Eye Slip / Big Eye Cargo / American Hook Stainless Steel 316
Price:
Negotiation
MOQ:
900kg
Delivery Time:
30days
Brand:
QBH
Product Description
Product Description

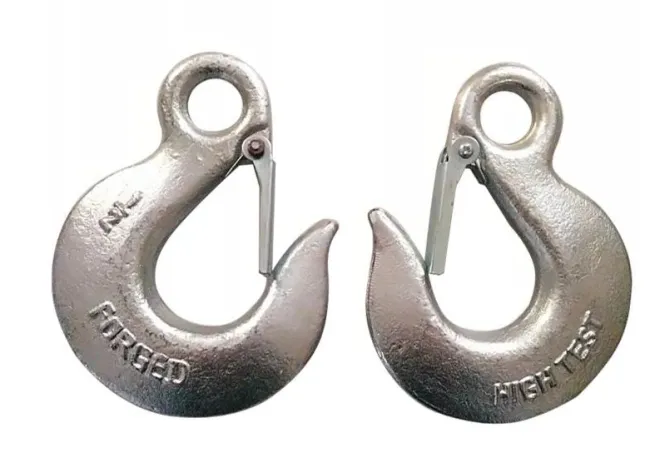

DIN689 Standard Eye Slip Hook with Latches
![DIN689 Standard Eye Slip/Big Eye Cargo/American Hook]()
![DIN689 Standard Eye Slip/Big Eye Cargo/American Hook]()
- Usage: Fitting
- Color: Color Matching
- Origin: China
- Material: Metal
- Feature: Anti-corrosion
- Adjustable: Adjustable
- HS Code: 732690
American hook
| Size of | Working Load Limit (Lbs) | DIMENSIONS (in) | |||
| Chain | H-323 | A-323 | B | E | R |
| 1/4" | 2,600 | 3,600 | 0.5 | 0.34 | 1.97 |
| 5/16" | 3,900 | 5,400 | 0.56 | 0.44 | 2.25 |
| 3/8" | 5,400 | 7,500 | 0.66 | 0.5 | 2.56 |
| 7/16" | 7,200 | 10,000 | 0.75 | 0.56 | 2.94 |
| 1/2" | 9,200 | 12,750 | 0.88 | 0.66 | 3.38 |
| 5/8" | 12,750 | 19,000 | 1.06 | 0.78 | 4.11 |
| 3/4" | 18,500 | 27,000 | 1.38 | 0.94 | 5.16 |
| Surface treatment | WLL, Size, Grade, CE, Batch No. |
| Application | Used in connecting operation |
| Custom | Special specification and marks can be made according to customers |
| Packing | Packed in cartons with plastic bags inside on iron pallets |
| B.L | 4 times*WLL |
| workload | Proof tested to 2½ Times working load limit |
