Photovoltaic Parts 300mm Stainless Steel Hanger Bolts 304 316
Photovoltaic Accessories Stainless Steel SCREW 304 316 M8 M10 M12 M16 Different Thread 100mm To 300mm Length

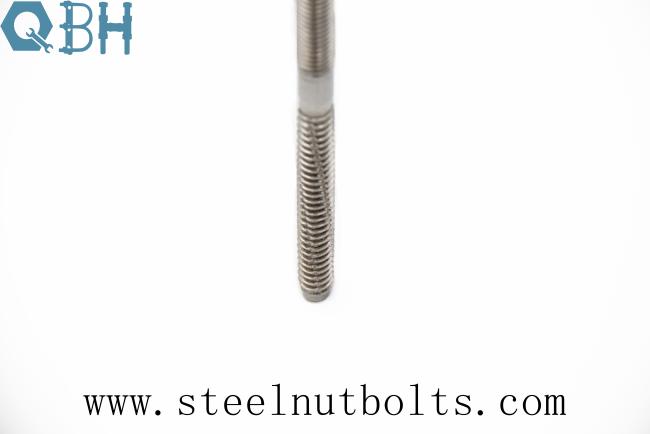

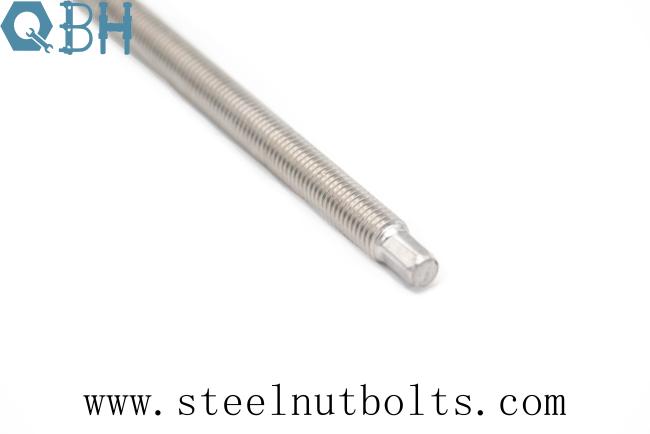

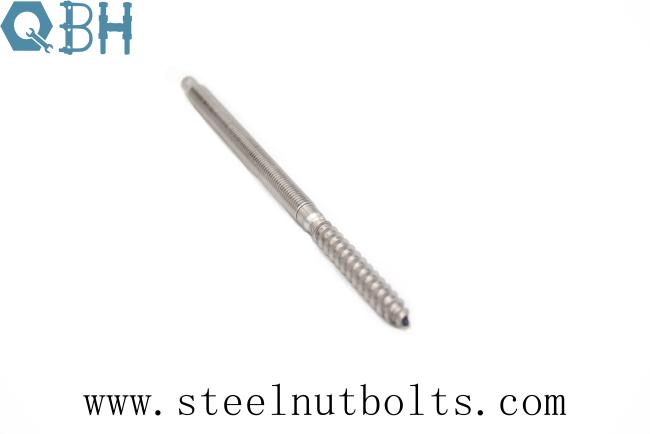

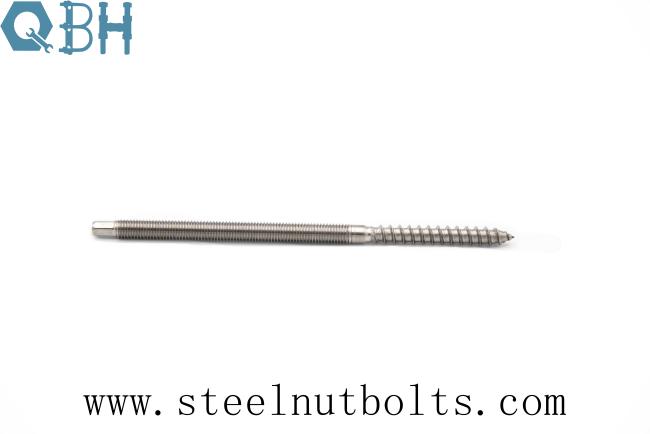

The main material of this product is stainless steel,mainly 304 and 316,the two ends are different threads.
We can provide free samples for customer inspection,if we cha any more.
Product Grade
Grade A2-70 A2-80 Grade A4-70 A4-80
Materials and Chemical compstition
| CHEMICAL COMPOSI(% ) | |||||||||
| Type | C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
| ≤ | ≤ | ≤ | ≤ | ≤ | ≥ | ≥ | ≥ | ≈ | |
| 201Cu | 0.08 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 14.0-17.0 | 2.0-3.0 | |
| 201 | 0.15 | 1.00 | 8.50 | 0.06 | 0.03 | 3.50-5.50 | 16.0-18.0 | ||
| 202 | 0.15 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 17.0-19.0 | ||
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 5.00-8.00 | 16.0-18.0 | ||
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | ||
| XM7 (302HQ) |
0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.5 | 17.0-9.00 | 3.0-4.0 | |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.0 | 17.0-19.0 | ≤0.60 | |
| 304 | 0.07 | 1.00 | 2.00 | 0.035 | 0.03 | 8.00-10.0 | 18.0-20.0 | ||
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | 1.0-3.0 | |
| 304M | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.0 | 18.0-20.0 | ||
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (12Ni) |
0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (10Ni) |
0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-13.0 | 17.0-19.0 | Ti≤5*C% | |
| 2520 | 0.08 | 1.00 | 2.00 | 0.035 | 0.03 | 19.0-22.0 | 24.0-26.0 | ||
PACKING
QBH BULK
20-25KG/CTN,36CTNS/PALLET
20-30KG/BAGS,36BAGS/PALLET
ONE TON/BOXES
50KG/ IRON DRUM,12 IRON DRUMS/PALLET
QBH SMALL PACKING
6boxes/CTN,36CTNS/PALLET
Packing in small boxes according to customer’s requirements
Packing in plastic bag according to customer’s requirements
QBH PALLET TYPE
SOLID WOOD FUMIGATION PALLET
EURO Pallet
THREE SPLINT PALLET
WOODEN BOX
The advantages of QBH
- QBH brand sales to the main quality assurance.
- Years of export trade management, excellent service, word-of-mouth guarantee.
- By working with TUV,escort for quality.
- Customization of non-standard parts can be made according to customer's requirements and drawings.
- For quality customers,we can provide a certain credit period.
