Ore Grinding Mill Rod Mill Used In Coal Water Slurry Equipment

1. Product description of Ore Grinding Mill

Our company can produce rod mill with diameter below 8M. Rod mill can be used in artificial stone sand, mineral processing, chemical, electric power and other industries of the first grinding.

Φ 3.2 by 4.8 m

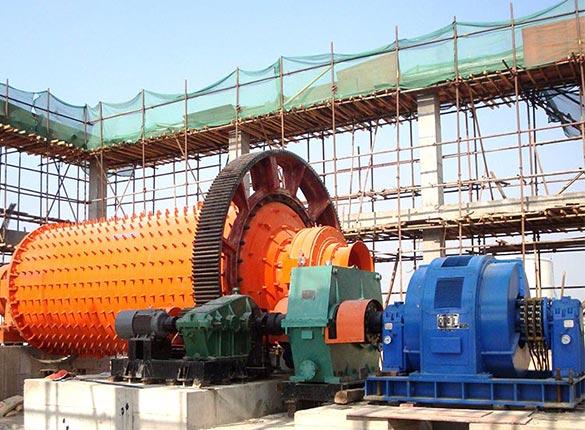

ф4.3 × 6M rod mill unit is a large rod mill developed, which marks a new height in the field of design of large rod mill.

The 4.3× 6M rod mill unit is a large rod mill in the rod mill industry in China, and is also the largest type of rod mill applied in the coal chemical and water slurry industry. Modern design means such as computer-aided design, finite element analysis and optimization design are effectively used in the design of the complete equipment of the rod mill unit. Or the structural design of each component makes the performance of the product more excellent.

Based on the coal gasification project, accelerate the follow-up project φ4.7 × 6M rod mill (wet) market development and promotion efforts.

Bar mill is a series of large mill products.

2. Development design rod mill technical characteristics are:

(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;

(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;

(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;

(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.

(5) Large and medium-sized mill equipped with slow driving device;

(6) Large and medium-sized mill equipped with high and low pressure lubrication station;

(7) Control and protection system adopts PLC control.

3. Product parameters of Ore Grinding Mill Rod Mill Used In Coal Water Slurry Equipment

Technical parameters of Luo ore rod mill:
