Complete Production Line Laterite Nickel Furnace Calcination Rotary Kiln
| Complete Production Line laterite nickel furnace calcination rotary kiln |
Description of Lateritic Nickel Rotary Kiln:
The rotary kiln is the core equipment in laterite nickel ore smelting, mainly used in the RKEF (rotary kiln-electric furnace) process. It processes the ore through drying, roasting, and reduction steps to produce nickel-iron alloys for smelting in the electric arc furnace.
LUOYANG ZHONGTAI Lateritic Nickel Rotary Kiln technical characteristics:
♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
♦ Tyre,Support Roller,Open gear adopts alloy cast steel;
♦ Sliding bearing with large gap not scraping tile bearing;
♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
♦ Adopts hydraulic gear wheel;
♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
♦ A slow drive device.
Technical specifications of Cement Rotary Kiln
| Name | laterite nickel furnace calcination rotary kiln |
| Equipment name | Rotary kiln |
| Specification | Φ5.5×115m |
| Application | Roasting laterite ores |
| Amount | 1Set |
| Output | 80-100(roasted sand)t/h |
| Driving mode | Double driving |
| Type of thrust roller | Hydraulic thrust roller |
| No. of support | 4 |
| Slope ( sine) | 3.0% |
| Driving mode | Bilateral double-driving |
| Main driving | 0.2~1.2r/min |
| Auxiliary driving | 6.7r/h |
| Sealing mode of kiln head | Sheet steel (provisional) |
| Sealing mode of kiln end | Air cylinder |
| Cooling of kiln head | Air cooling |
| Rotating direction | Clockwise (from discharging end) |
| Total weight | 1648 ( excluding feed and discharge cover)t |
| Temperature of discharged materials | 750~850°C |
| Temperature of waste gases | 200~400°C |
| Thickness of refractory bricks | 230mm |
Cement Rotary Kiln

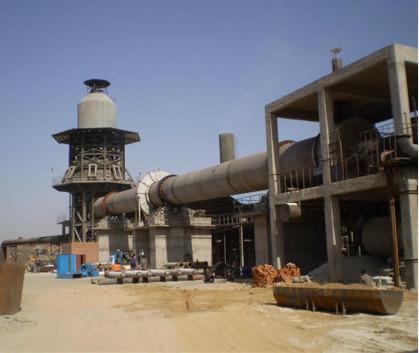

Product Display of Cement Rotary Kiln
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
