Steel Ball Mill Air Swept Coal Mill Ore Grinding Mill Used In Mining Industry
1. Luo mine development and design the wind sweep | wind swept coal grinding technology features are:
(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;
(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;
(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mill equipped with high and low pressure lubrication station;
(7) Control and protection system adopts PLC control.
2. Product parameters of Steel Ball Mill Air Swept Coal Mill Ore Grinding Mill
air swept mill | air swept coal mill technology parameters:
| SPEC(diameter×length) | Rev (r/min) |
Feed size(mm) | Production capacity(t/h) | Load of grinding media (t) |
Main motor | Main reducing gear | Weight (t) |
|||
| Type | Power (kw) | Re(rpm) | Type | Speed ratio | ||||||
| φ2.2×4.4 | 22.4 | ≤25 | 8～9t/h | 18t | YRKK4501-6 | 250 | 986 | ZD60-11 | 6.3 | 36.7 |
| φ2.2×5.8 | 22.4 | ≤25 | 5.5～7 | 23.5～25 | Y4005-8 | 280 | 750 | ZD70-10 | 5.6 | 45 |
| φ2.4×4.75 | 21.2 | ≤25 | 14 | 22～24 | YR4501-8 | 315 | 740 | ZD60-8 | 4.5 | 49 |
| φ2.4×4 2 | 20.2 | ≤25 | 10～11 | 19 | YRKK450-8 | 250 | 740 | ZDY355 | 4.5 | 60 |
| φ2.4×4.5 2 | 20.2 | ≤25 | 10～12 | 20.8 | YRKK500-8 | 280 | 740 | JDX45 | 4.5 | 68 |
| φ2.6×(5.25 2.25) | 19.7 | ≤25 | 9～10 | 28 | YRKK500-8 | 400 | 740 | ZDY450 | 4.5 | 87.4 |
| φ2.8×(5 3) | 18.7 | ≤25 | 13～13.5 | 32 | Y5001-8 | 500 | 740 | JDX560 | 4.5 | 102 |
| φ2.9×4.7 | 19.1 | ≤25 | 14～19 | 34.4 | YR560-8 | 500 | 743 | MBY560 | 5.6 | 79 |
| φ2.5×3.9 | 21 | ≤25 | 14 | 21 | JR138-8 | 280 | 740 | ZD70-9 | 5 | 49.5 |
| φ3×(6.5 2.5) | 18.3 | ≤25 | 17～19 | 43 | YRKK5603-8 | 630 | 740 | MBY560 | 5 | 120 |
| φ3.2×4.8 | 16.7 | ≤25 | 20 | 48 | YR630-8 | 630 | 740 | MBY560 | 5 | 118 |
| φ3.2×(6.5 2) | 16.9 | ≤25 | 20 | 50 | YRKK560-8 | 710 | 740 | JDX630 | 5 | 137 |
| φ3.5×8 | 17.2 | ≤25 | 55～60 | 80 | YRKK710-8 | 1000 | 740 | MBY800 | 6.3 | 182 |
| φ3.8×(7.75 3.5) | 16.7 | ≤25 | 85 | 85 | YRKK710-8 | 1400 | 740 | JDX90-WX-2A | 5.6 | 215 |

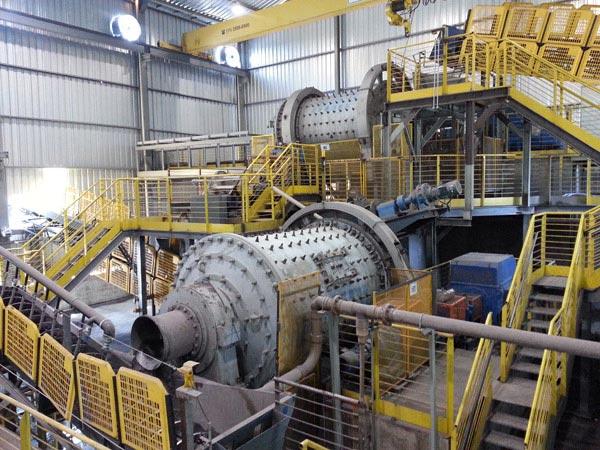

Steel Ball Mill Air Swept Coal Mill Ore Grinding Mill Used In Mining Industry
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
