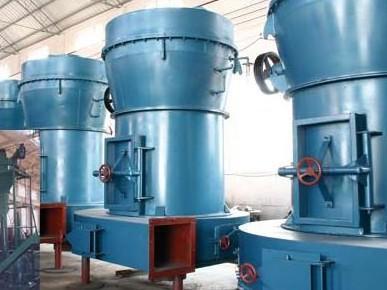

15-30 MM Feeding Size Raymond Mill Ore Grinding Mill For Mineral Stone Grinding

1. Working principle of Raymond mill ore grinding mill:

(1) Work, will need to crush materials from hood shell side into the hopper add machine, relying on roller device of hanging on the host plum flower shelf, around the vertical axis of revolution, itself rotates at the same time, due to the effect of rotating centrifugal force when the roller swing outward, press in ring, the shovel knife scooping up material to between grinding roller and grinding ring, The purpose of crushing materials is achieved by rolling and pressing the grinding roller.

(2) Air selection process: after the material is ground, the fan will blow the wind into the main machine housing, blowing the powder, sorting by the analyzer placed above the grinding room, the fine and coarse materials fall into the grinding room for regrinding, fineness in accordance with the specifications of the wind into the cyclone collector, collected after discharging through the powder outlet, that is, the finished product. The air flow is returned to the fan by the return duct at the upper end of the big cyclone collector.

(3) The wind path is circulating and flows under negative pressure. The increased air volume of the circulating air path is discharged through the exhaust pipe between the fan and the host machine, and enters the small cyclone collector for purification treatment.

2. Product parameters of Raymond mill ore grinding mill:

After-sales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.
