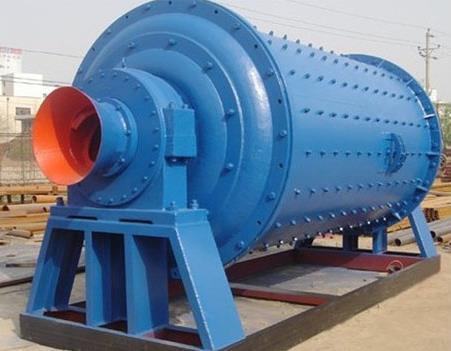

Ore Grinding Mill Lattice Ball Mill For Mineral Processing Ball Mill

1. The technical characteristics of ball mill developed and designed by Luoyang Mining Machinery Factory are:

(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;

(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;

(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;

(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.

(5) Large and medium-sized mill equipped with slow driving device;

(6) Large and medium-sized mill equipped with high and low pressure lubrication station;

(7) Control and protection system adopts PLC control.

2. Product parameters of ball mill of Ore Grinding Mill

(1) Technical performance table of luo Mine wet grid ball mill

(2) Technical performance table of Luo Mine overflow ball mill
