Ultra-Fine Pulverizer Ore Grinding Mill LXM Low Failure Rate convenient installation and maintenance
Ore Grinding Mill Ultra-Fine Pulverizer
1. Features of centrifugal ultrafine pulverizer(ore grinding mill)
(1) Low noise and vibration;
(2) The pressure is high and the fine powder is large;
(3) The grinding rings and grinding rollers wear evenly and have a long service life, which is 3-5 times that of ordinary Raymond mills;
(4) Suitable for processing hard materials;
(5) The iron content in the micropowder is low;
(6) It can be operated continuously, and the oil filling of the bearing chamber of the grinding roller will not be affected during operation;
(7) Low power consumption, high efficiency, convenient installation and maintenance;
(8) There is no blade feeding in the mill, and the failure rate is low.
2. Scope of application of centrifugal ultrafine pulverizer(ore grinding mill)
Centrifugal ultrafine pulverizer is mainly suitable for barite, calcite, limestone, kaolin, bentonite, marble, gypsum, refractory, quartz stone, glass, ceramics and other minerals whose hardness is not greater than 9.3 and humidity is below 6% High-fine powder processing, the particle size can be adjusted arbitrarily between 80 meshes and 1500 meshes.
Ore grinding mill technical parameters
| Technical parameters/model | LXM820 | LXM1120 | LXM1300 | LXM1550 | LXM1700 | LXM1900 | LXM2200 | LXM2300 |
| Diameter of grinding disc (mm) | 820 | 1120 | 1300 | 1550 | 1700 | 1900 | 2200 | 2300 |
| Output (t/h) | 1~5 | 6~10 | 16~20 | 22~28 | 30~38 | 36~43 | 70~90 | 95~115 |
| Grinding material particle size (mm) | 0~25 | 0~30 | 0~35 | 0~45 | 0~50 | 0~55 | 0~60 | 0~65 |
| Product moisture (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Total motor power (kw) | 55 | 110 | 220 | 315 | 400 | 500 | 710 | 800 |
| Equipment weight (t) | 16 | 27 | 45 | 75 | 90 | 115 | 160 |
| model | -18 | -21 | -26 | -27 | -30 |
| Feed particle size (mm) | 8-15 | 8-15 | 10-15 | 15-20 | 15-25 |
| Finished particle size (mm) |
0.04-0.02 (400-600mesh) |
0.04-0.02 (400-600mesh) |
0.04-0.02 (400-600mesh) |
0.04-0.02 (400-600mesh) |
0.04-0.02 (400-600mesh) |
| Center speed (r/min) | 300 | 190 | 180 | 170 | 150 |
| Motor power (kw) | 24-29 | 32.2 | 35.7-38 | 40-42.5 | 57.5-59.5 |

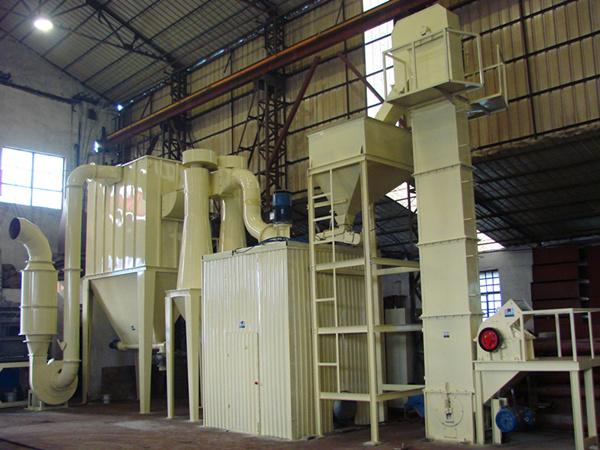

Ore grinding mill photo explanation
