400 - 1200mm Belt Width Belt Conveyor Of Conveying Hoisting Machine
Belt Conveyor With 400-1200mm Belt Width Of Conveying Hoisting Machine

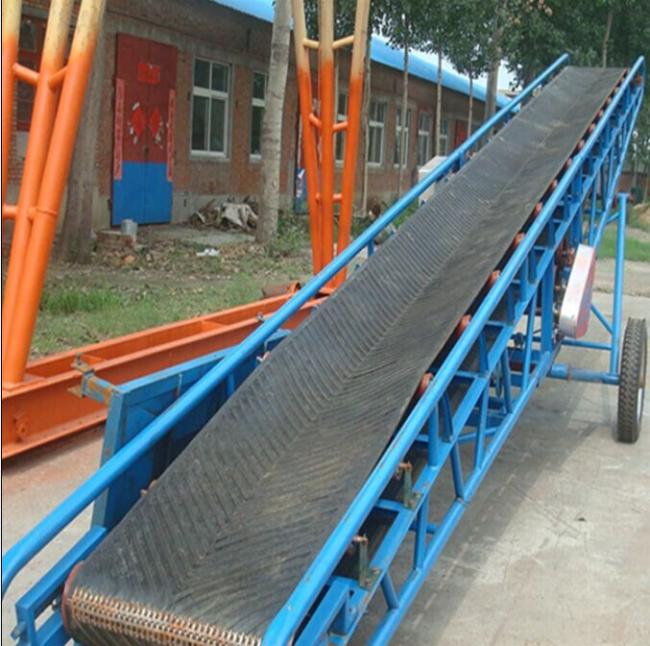

1. Product introduction of belt conveyor Conveying Hoisting Machine
The belt conveyor manufactured by Luoyang Mining Machinery Factory can transport various materials economically and effectively. It has the characteristics of large throughput, long conveying distance, smooth conveying, low noise, simple structure, convenient maintenance, less energy consumption, standardized components and so on. Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines and hydropower station construction sites and other production departments.
Belt conveyor, also known as belt conveyor, is widely used in household appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and other industries, objects assembly, testing, debugging, packaging and transportation.
Line conveying can be selected according to the process requirements: ordinary continuous operation, beat operation, variable speed operation and other control modes; Line body selection according to local conditions: straight line, curve, slope and other line body form of transportation equipment including: belt conveyor, also called belt conveyor or belt conveyor, is the composition of rhythmic flow line of indispensable economic logistics transportation equipment. According to its conveying capacity, the belt machine can be divided into heavy belt machine such as mining belt conveyor, light belt machine such as used in electronic plastics, food, light industry, chemical and pharmaceutical industries.
2. Product parameters of Conveying Hoisting Machine
Main technical parameters of belt conveyor:
| Belt width (mm) | Belt length/power | Conveying speed(r/s) | Processing capacity(t/h) | ||
| Ⅰ(L/kW) | Ⅱ(L/kW) | Ⅲ(L/kW) | |||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 660-1200 |
Belt Conveyor With 400-1200mm Belt Width Of Conveying Hoisting Machine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
