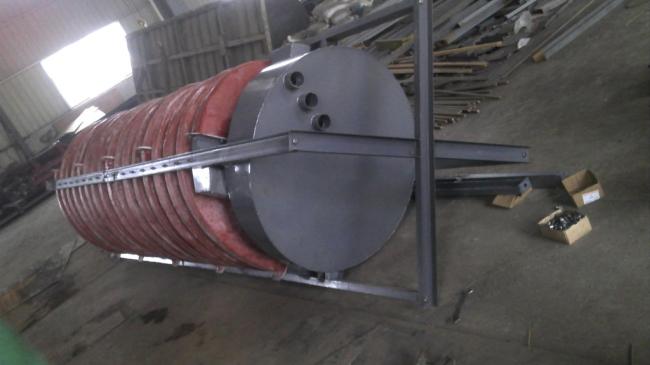

Red Mining Ore Dressing Equipment Spiral Chute Separator Diameter 1200mm 900mm
Mining Ore Dressing Equipment ForNo Moving Part Spiral Chute Separator
1. Working principle of spiral chute Ore Dressing Equipment :
The divider is placed freely on the cross (or tripod) of the supporting table. The uniform pulp is slowly fed to the spiral groove surface through the feeding trough installed at the head of the spiral groove for separation. The tail end of the spiral groove is provided with a valve block type product interception groove, which divides the sorted products into three (or four) kinds according to grade along the radial direction. Use the position of the regulator block to change the cut width of each product. The product concentrator is a concentric annular barrel, which collects and exports the intercepted long ore flow separately. The cross section of spiral chute and the change of slope of curve are especially suitable for the selection of fine granular materials. The beneficiation equipment has the advantages of simple structure, no moving parts, light weight, no noise, convenient configuration, installation and maintenance.
2. Working characteristics of spiral chute Ore Dressing Equipment :
The working characteristic of spiral chute is that the fine, middle and tailings are intercepted respectively at the end of the trough, and no washing water is added in the sorting process. The spiral groove is the main part of the equipment, which is made of glass steel spiral plates connected by bolts. The inner surface of the spiral groove is coated with a wear-resistant lining, usually polyurethane wear-resistant adhesive or epoxy resin mixed with artificial emery. A wear-resistant layer containing diabase powder was applied to the inner surface of the spiral groove. Above the spiral groove is a ore separator and a ore feed groove; The lower part has a product interceptor and a chute. The whole equipment is set up vertically with channel steel.
Mining Ore Dressing Equipment ForNo Moving Part Spiral Chute Separator
3. Spiral chute product parameters of Ore Dressing Equipment
| Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Outer diameter (mm) | 1200 | 900 | 600 | 400 | |
| Pitch (mm) | 900 ,720 , 540 | 675 , 540 , 405 | 450 , 360 , 270 | 240 , 180 | |
| Pitch to diameter ratio (pitch/diameter) | 0,75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.6 , 0.45 | |
| Transverse Angle (degree) | 9° | 9° | 9° | 9° | |
|
Each most Number of mounting screws |
4 | 4 | 3 | 2 | |
| Feeding size (mm) | 0.3-.0.03 | 0.3-.0.03 | 0.2-0.02 | 0.2-0.02 | |
| Ore feeding concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 | |
| Production capacity (ton/hour) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
| Dimensions | L(mm) | 1360 | 1060 | 700 | 460 |
| W(mm) | 1360 | 1060 | 700 | 460 | |
| H(mm) | 5230 | 4000 | 2600 | 1500 | |
| Weight(kg) | 600 | 400 | 150 | 50 | |
Mining Ore Dressing Equipment ForNo Moving Part Spiral Chute Separator
Mining Ore Dressing Equipment ForNo Moving Part Spiral Chute Separator
