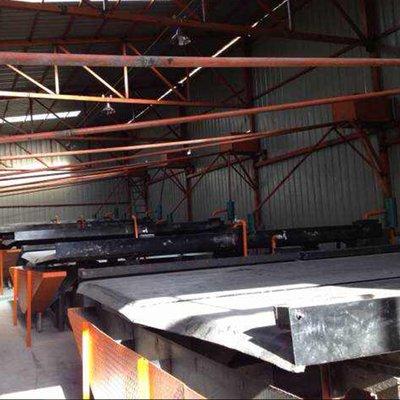

Gravity Separation Ore Dressing Equipment Shaking Table for Mineral and Gold Particle Concentration in Mining Industry
Gravity Separation Ore Dressing Equipment Shaking Table for Mineral and Gold Particle Concentration in Mining Industry
1. Working principle of ore dressing equipment shaking table:
Beneficiation process is conducted in with a copy of the tilting table surface, mineral grain group from the Angle of feeder trough into bed surface, and at the same time by lateral flushing water supply for the sink, ore grain in gravity, lateral flow momentum, asymmetry of bed surface for reciprocating motion under the action of the inertia and friction, according to the proportion and granularity theory, then make the longitudinal motion along the bed surface and lateral movement along the inclined bed surface. Therefore, the specific gravity and particle size of different ore particles along their respective movement direction gradually from side A to side B fan-shaped flow, respectively from the concentrate end and tailings side of different areas discharged, and finally divided into concentrates, middling and tailings.
2. Structural characteristics of ore dressing equipment shaking table:
The dressing equipment is mainly composed of the head of a bed, motor, slope adjuster, bed surface, ore tank, water tank, strip and lubrication system and other eight system parts. The separation mechanism is the use of the specific gravity difference of the sorted minerals, the differential movement provided by the head of the bed, inclined water flow and different forms of the bed, so that the ore particles in the bed surface loose stratification, selective transport, the formation of fan-shaped zone on the bed surface, so as to produce different rich and poor products.
3. Product parameters of ore dressing equipment shaking table:
| Coarse sand table | Fine sand table | Slime (slotted) shaking table | Fine mud shaking table | |
| Feed size/mm | 2~0.5 | 0.5~0.074 | 0.07~0.019 | 0.019~0.0037 |
| Ore feed (tin ore)(t/d) | 20~35 | 10~20 | 3~10 | 5~15 |
|
Mineral surface size /mm |
4395×1825 | 4395×1825 | 4395×1825 | 4395×1825 |
|
Mineral surface area /m2 |
7.4 | 7.4 | 7.4 | 7.4 |
| Stroke Length/mm | 16~22 | 11~16 | 8~11 | 5~7 |
| Times of stroke/min-1 | 270~290 | 290~320 | 320~360 | 480~520 |
|
Transverse slope of table surface(°) |
2.5~4.5 | 1.5~3.5 | 1~2 | 1~1.15 |
| Power /Kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimensions /mm | 5446×1825×1212 | 5446×1825×1227 | 5446×1825×1203 | 5446×2338×1203 |
| Total weight/Kg | 1015 | 1030 | 1065 | 1065 |
