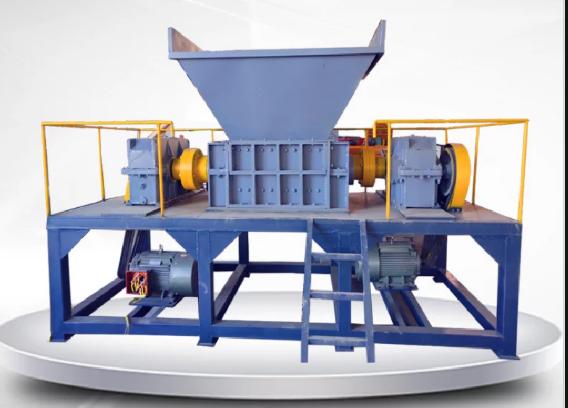

Metallurgy Heavy Duty Shredding Machine High Performance
Metallurgy Machine Shredder High-Performance Heavy-Duty Shredding Machine
1. Metallurgy Machine Shredder use
Shredder is a machine used for fine crushing, generally used for processing raw materials or scraps, to make its size smaller. A typical example is the shredding of plastic or rubber scraps as raw materials to melt and then granulated, used to recreate plastic bottles, tires or trash cans, etc. Shredder used in plastic recycling industry, often used for waste large diameter PE plastic pipe, bale packaging plastic film, large piles of plastic sheets and machine head material crushing.
2. The type of shredder of Metallurgy Machine:
The commonly used structure of the shredder mainly has two axes (or four axes) shear type, single-axis roller cutting rough crushing tear type and so on.
1) Shear shredder
The most common is the shear crusher, which has two to four knife shafts and mainly relies on the principle of "cutting and cutting" to complete the crushing process. The pulverizer works by shredding objects like scissors.
2) Roller cutting mill
The machine is equipped with a number of blades on a rotating knife roll, and the fixed blade is formed to cut, to complete the effect of crushing materials.
3) Tear type coarse crusher
The principle of the shredder is to swing the hook to tear the garbage material. This type is mainly used for rough crushing.
3. A detailed list of attachments required for 1000 heavy duty shredder
| Subject form | Model number | 1000 heavy duty |
| Air-frame | It is easy to disassemble and assemble with split type and welded with Q235 steel plate | |
| Overall dimensions (mm) | 4000*1600*1800 (length, width and height including hopper) | |
| Speed (r/min) | 12 RPM | |
| Required power (kw) | 37kw*2 sets of national standard copper wire (Kaifeng Wanli) | |
| Reduction type number | ZQ750*2 (Zibo Huiyi) | |
| Reducer speed ratio | 48.57 | |
| Rack | Square steel structure | |
| Cutter head | Quantity (pieces) | 33 |
| Cutter material | 9crsi | |
| Cutter diameter | 360mm | |
| Cutter thickness | 30mm | |
| Knife cut | Small hook Angle triangular tooth shape, the inner hole for eight | |
| Supporting manufacturer | Ma On Shan | |
| Shaft | Form | Octagonal axis |
| Shaft diameter (mm) | 200 | |
| Shaft length (mm) | 1400 | |
| Spacer sleeve | Material | 55crsi |
| Quantity (PCS) | 33 | |
| Bearing | - | Harbin (aligning roller bearing) |
| connect | Host connection mode | Chain coupling |
| Control cabinet | Start protection | Automatic reversal when current is overloaded |
Metallurgy Machine Shredder High-Performance Heavy-Duty Shredding Machine
Remarks:
1. According to the data provided by the user and relevant requirements, according to the site design layout, to optimize the process and minimize the crushing cost.
2. Technical guidance installation, free technical training for user operators.
3. Provide basic drawings, installation instructions, and precautions for operation and maintenance.
4. The warranty period is one year, and the supplier of the equipment has quality problems during the warranty period for free maintenance of the user. If there is a problem outside the warranty period, the supplier will pay the cost to the user for maintenance.
Metallurgy Machine Shredder High-Performance Heavy-Duty Shredding Machine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
