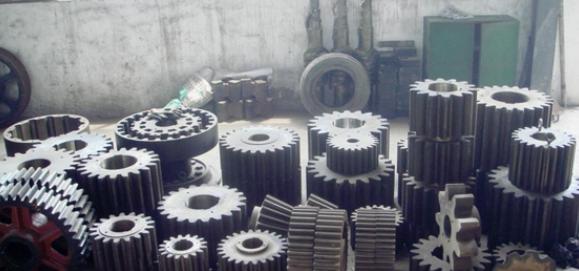

Oem Machinery Part Pinion Gear For Rotary Kiln / Ball Mill / Cement Mixer
OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
1. Pinion design
Bored solid on shaft / integral self aligned spur, helical or double helical
Materialization forged alloyed steel through hardened, case hardened or quenched and tempered
Spur, helical or double helical carburized induction nitrided
2. Characteristics
• Gear cutting with hobs
• The gear quality is checked by profile tester
• Tooth flank modification
• Profile correction
• Lead correction (straight/barrel)
• Designs /ratios according to ISO-DIN-A.G.M.A.
• FEM/FEA simulation software
OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
3. Pinion gear material
42CRMO STEEL DATA
| C : 0.38-0.45% |
| Si: 0.17-0.37% |
| Mn: 0.50-0.80% |
| S : Allow residual content <0.035% |
| P : Allow residual content <0.035% |
| Cr: 0.90-1.20% |
| Ni: Allow residual content <0.030% |
| Cu: Allow residual content <0.030% |
| Mo: 0.15-0.25% |
MECHANICAL DATA
| Tensile Strength σb (MPa): >1080(110) |
| Yield point σs (MPa): >930(95) |
| Reduction of area ψ (%): >45 Akv (J) |
| Impact absorbing energy Akv(J): >63 |
| Impact toughness value αkv (J/cm2): >78(8) |
| Elongation σ5 (%): >12 |
| Hardness: <217HB |
OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
4. Standards/Certificates
• UNI EN ISO
• AWS
• ASTM
• ASME
• DIN
5. Applications
Our pinions are applied in the cement and minerals industries:
Ball - mills
ROD - mills
Semi Autogeneous Grind (SAG)
Rotary kilns/coolers/dryers
6. Advantages
One Source
Original Equipment Manufacture (OEM) Technical Drawings
Gearing technical expertise for kilns and grinding mills
State of the art manufacturing facilities and quality
Global sales and service support
High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion
OEM Machinery Part Pinion Gear For Rotary Kiln / Ball Mill / Cement Mixer
Company Information
Luoyang Zhongtai Industries Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
