Exceptional Laterite Nickel-Iron Rotary Kiln with Kiln Body Made of Carbon Steel or Alloy Steel Plate
Product presentation
Laterite nickel ore smelting nickel iron rotary kiln equipment is one of the key equipment in the whole laterite nickel smelting process. The ore enters the rotary kiln after drying, and is heated to 800℃ in the rotary kiln to remove the ore surface water and crystal water, and partially reduce the iron, nickel and cobalt oxides in the ore, and enter the electric furnace smelting.
Product advantages
(1) The main energy source for smelting is coal, not expensive coke or electricity. (2) The raw materials can be freely selected, and various laterite nickel ores in Southeast Asia can be used. (3) The high-nickel ferronickel produced is of high quality (containing about 20% Ni) and can be directly used as a raw material for stainless steel production. (4) It can also be used as a coolant during molten steel smelting. The smelting method and process are as follows: The pretreatment step is to grind the raw laterite nickel ore, mix it with carbon-containing materials and flux limestone, and then continuously feed it into the rotary kiln.
Introduction
Luo mine adopts domestic advanced technology to develop large laterite nickel-iron rotary kiln series products, which can meet the supporting production line of large laterite nickel smelting project. Company has the domestic first-class laterite nickel iron rotary kiln wu development research and design team, perfect test and detection methods of laterite nickel iron rotary kiln and superior laterite nickel iron manufacturing equipment and manufacturing technology of rotary kiln, has shaped into a complete laterite nickel iron rotary kiln design, manufacture, installation and commissioning services for the integration of technology and the production system.

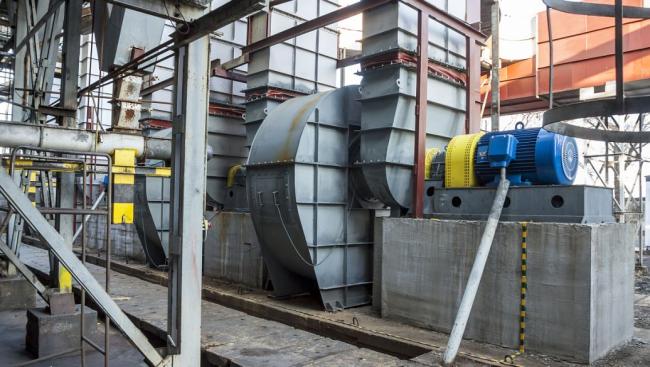

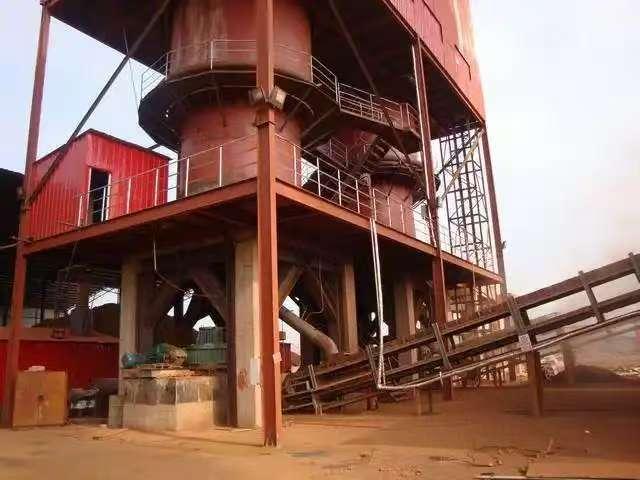

Product display
Technical parameters of laterite nickel-iron rotary kiln
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×110 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive |
||||
