Automated Metallurgical And Building Materials High Productivity Hydraulic Gyratory Crusher
Product Overview
Hydraulic gyratory crusher is widely used in metallurgy, building materials, chemical industry and hydropower industries. It is one of the main equipment for coarse crushing of ore or rock, with the characteristics of large crushing ratio, high production capacity and uniform product particle size. The gyratory crushers designed and manufactured by ZTIC have formed a series from PXZ 0506 to PXZ 1623, with the advantages of complete product specifications, advanced design, reliable performance, stable operation and low energy consumption.
Product structure
The hydraulic gyratory crusher consists of transmission, base, eccentric sleeve, crushing cone, middle frame, crossbeam, prime mover, oil cylinder, hydraulic, pulley, electrical and dry and thin oil lubrication. The motor drives the eccentric sleeve to rotate through the pulley and bevel gear. When the eccentric sleeve rotates, it drives the crushing cone to swing around the center of the crusher. As a result, the surface of the crushing cone sometimes approaches and sometimes leaves the surface of the fixed cone, so that the material fed into the crushing chamber is continuously squeezed and bent and crushed. The crushed material is discharged from the bottom of the crushing chamber by its own weight.
Working Principle
Hydraulic gyratory crusher is a crushing machine that uses the gyratory motion of the crushing cone in the cone cavity of the shell to squeeze, split and bend the material, and roughly crushes ores or rocks of various hardness. The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and its lower end is placed in the eccentric hole of the sleeve. When the sleeve rotates, the crushing cone performs eccentric gyratory motion around the center line of the machine. Its crushing action is continuous, so its working efficiency is higher than that of the jaw crusher.

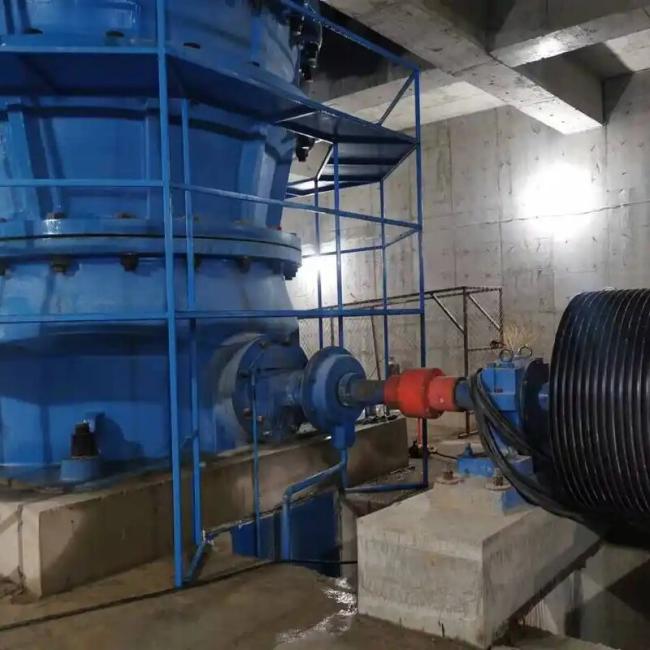

Product Display
Product Parameter
| Model | Feeding port size | Discharge port size | Maximum feed size | Discharge opening adjustment range | Output | Cone bottom diameter | Main motor | Lubrication Station Specifications(≥MIN) | Cooling water usage(m³/H) | |||
| MM | MM | MM | MM | T/H | MM | type | Power(kw) | Speed(R/min) | Voltage(v) | |||
| PXZ 0506 | 500 | 60 | 420 | 60～75 | 140～170 | 1200 | JR128-10 | 130 | 585 | 380 | 40 | 3 |
| PXZ 0710 | 700 | 100 | 580 | 100～130 | 310～400 | 1400 | JR136-8 | 145 | 730 | 3000 | 40 | 3 |
| JR128-8 | 155 | 380 | ||||||||||
| PXZ 0909 | 900 | 90 | 750 | 90～120 | 380～510 | 1650 | JR137-8 | 210 | 735 | 380 | 63 | 3 |
| PXZ 0913 | 900 | 130 | 750 | 130～160 | 625～770 | 1650 | JR137-8 | 210 | 735 | 380 | 63 | 3 |
| PXZ 0917 | 900 | 170 | 750 | 170～190 | 815～910 | 1650 | JR137-8 | 210 | 735 | 380 | 63 | 3 |
| PXZ 1216 | 1200 | 160 | 1000 | 160～190 | 1250～1480 | 2000 | JRQ158-10 | 310 | 590 | 6000 | 125 | 6 |
| PXZ 1221 | 1200 | 210 | 1000 | 210～230 | 1560～1720 | 2000 | JRQ158-10 | 310 | 590 | 6000 | 125 | 6 |
| PXZ 1417 | 1400 | 170 | 1200 | 170～200 | 1750～2060 | 2200 | JRQ1510-10 | 430 | 590 | 3000 | 125 | 6 |
| 400 | 6000 | |||||||||||
| PXZ 1422 | 1400 | 220 | 1200 | 210～230 | 2160～2370 | 2200 | JRQ1510-10 | 430 | 590 | 3000 | 125 | 6 |
| 400 | 6000 | |||||||||||
| PXZ 1618 | 1600 | 180 | 1350 | 180～210 | 2400～2800 | 2500 | JRQ158-10 | 310 | 590 | 6000 | 125 | 6 |
| PXZ 1623 | 1600 | 230 | 1350 | 210～240 | 2800～3200 | 2500 | JRQ158-10 | 310 | 590 | 6000 | 125 | 6 |
