Industrial Metallurgy Laterite Nickel Iron Rotary Kiln High Temperature Customization
Industrial Metallurgy Laterite Nickel Iron Rotary Kiln High Temperature Customization
The rotary kiln equipment for smelting nickel iron from laterite nickel ore is one of the key equipment in the entire laterite nickel smelting process. After drying, the ore enters the rotary kiln. After being heated to 800℃ in the rotary kiln, the surface moisture and crystal water of the ore are removed, and the iron, nickel and cobalt oxides in the ore are partially reduced before entering the electric furnace for smelting.
Product advantages
(1) The main energy source for smelting is coal, rather than expensive coke or electricity.
(2) Free choice of raw materials, various laterite nickel ores in Southeast Asia can be used.
(3) The high-nickel nickel iron produced is of high quality (containing about 20% Ni) and can be directly used as raw material for the production of stainless steel.
(4) It can also be used as a coolant during molten steel smelting.
Melting methods and processes
The pretreatment step is to grind the raw laterite nickel ore, mix it with carbon-containing materials and flux limestone, and then continuously feed it into the rotary kiln. In the rotary kiln, the hot air flow generated by the combustion of materials and coal moves in countercurrent, undergoing all smelting steps - drying, dehydration, reduction and metal growth. The metal is generated under semi-molten conditions in the kiln. The fired material melt is crushed and ground after it comes out of the rotary kiln, and the reduced nickel-iron alloy is separated from the discharged melt by gravity separation and magnetic separator.
Product Parameter
| Unit | Product specifications and parameter values | ||||
| φ2.5*27(m) | φ2.8*27(m) | φ3*30(m) | φ3.2*32(m) | ||
| Diameter | mm | φ2500 | φ2800 | φ3000 | φ3200 |
| Length | mm | 27000 | 27000 | 30000 | 32000 |
| Main motor power | kw | 160 | 160 | 220 | 310 |
| Capacity | t/d | 400 | 520 | 660 | 800 |
| Installation Angle | % | 2 | 2 | 2 | 2 |
| Weight | kg | 198000 | 228000 | 300800 | 350000 |

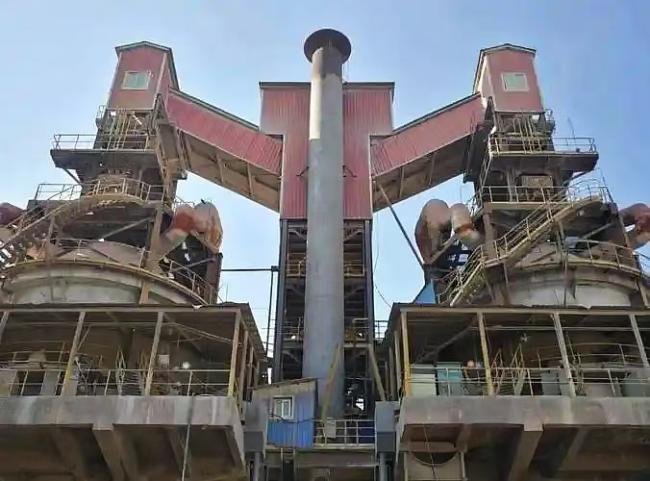

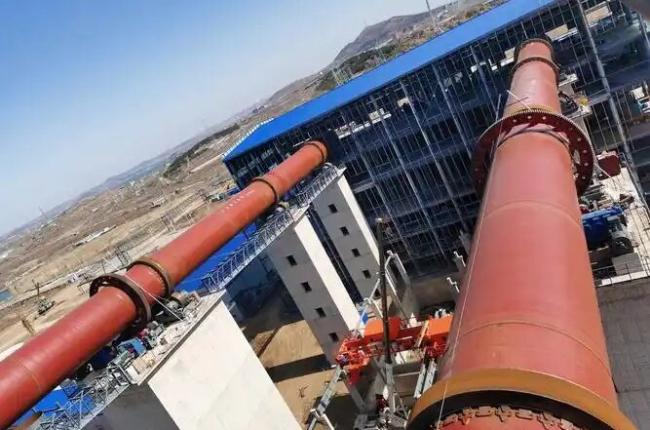

Product display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
