Large Capacity Low Energy Consumption Hydraulic Gyratory Crusher For Mining
Large Capacity And Low Energy Consumption Hydraulic Gyratory Crusher For Mining
Product Advantages
Hydraulic gyratory crusher has very significant technical advantages: large production capacity, high installed power, and the two indicators are improved by 30% to 50%. Large eccentricity, adjustable, and high production efficiency. The introduction of new design and new structure, the locking nut is placed on the shaft sleeve to avoid the shaft breakage phenomenon of the old crusher, and the main shaft is processed by integral forging to ensure the rigidity and strength of the main shaft. The use of spiral bevel gears improves the transmission power and transmission stability, and reduces the vibration and noise of the equipment. The application of hydraulic and lubrication integrated structure greatly improves the automation level. Humanized design, equipped with special tools for inspection and maintenance, improves the equipment operation rate, and reduces the labor intensity of workers.
Product advantages
1. Large crushing ratio
2. High production capacity
3. Uniform product size
4. Advanced design
5. Reliable performance
6. Stable operation
7. Low energy consumption
Working Principle
Hydraulic gyratory crusher is a crushing machine that uses the gyratory motion of the crushing cone in the cone cavity of the shell to squeeze, split and bend the material, and roughly crushes ores or rocks of various hardness. The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and its lower end is placed in the eccentric hole of the sleeve. When the sleeve rotates, the crushing cone performs eccentric gyratory motion around the center line of the machine. Its crushing action is continuous, so its working efficiency is higher than that of the jaw crusher.
Product Parameter
| Model | Feeding port size | Discharge port size | Maximum feed size | Discharge opening adjustment range | Output | Cone bottom diameter | Main motor | Lubrication Station Specifications(≥MIN) | |||
| MM | MM | MM | MM | T/H | MM | type | Power(kw) | Speed(R/min) | Voltage(v) | ||
| PXZ 0506 | 500 | 60 | 420 | 60～75 | 140～170 | 1200 | JR128-10 | 130 | 585 | 380 | 40 |
| PXZ 0710 | 700 | 100 | 580 | 100～130 | 310～400 | 1400 | JR136-8 | 145 | 730 | 3000 | 40 |
| JR128-8 | 155 | 380 | |||||||||
| PXZ 0909 | 900 | 90 | 750 | 90～120 | 380～510 | 1650 | JR137-8 | 210 | 735 | 380 | 63 |
| PXZ 0913 | 900 | 130 | 750 | 130～160 | 625～770 | 1650 | JR137-8 | 210 | 735 | 380 | 63 |
| PXZ 0917 | 900 | 170 | 750 | 170～190 | 815～910 | 1650 | JR137-8 | 210 | 735 | 380 | 63 |
| PXZ 1216 | 1200 | 160 | 1000 | 160～190 | 1250～1480 | 2000 | JRQ158-10 | 310 | 590 | 6000 | 125 |
| PXZ 1221 | 1200 | 210 | 1000 | 210～230 | 1560～1720 | 2000 | JRQ158-10 | 310 | 590 | 6000 | 125 |
| PXZ 1417 | 1400 | 170 | 1200 | 170～200 | 1750～2060 | 2200 | JRQ1510-10 | 430 | 590 | 3000 | 125 |
| 400 | 6000 | ||||||||||
| PXZ 1422 | 1400 | 220 | 1200 | 210～230 | 2160～2370 | 2200 | JRQ1510-10 | 430 | 590 | 3000 | 125 |
| 400 | 6000 | ||||||||||
| PXZ 1618 | 1600 | 180 | 1350 | 180～210 | 2400～2800 | 2500 | JRQ158-10 | 310 | 590 | 6000 | 125 |
| PXZ 1623 | 1600 | 230 | 1350 | 210～240 | 2800～3200 | 2500 | JRQ158-10 | 310 | 590 | 6000 | 125 |

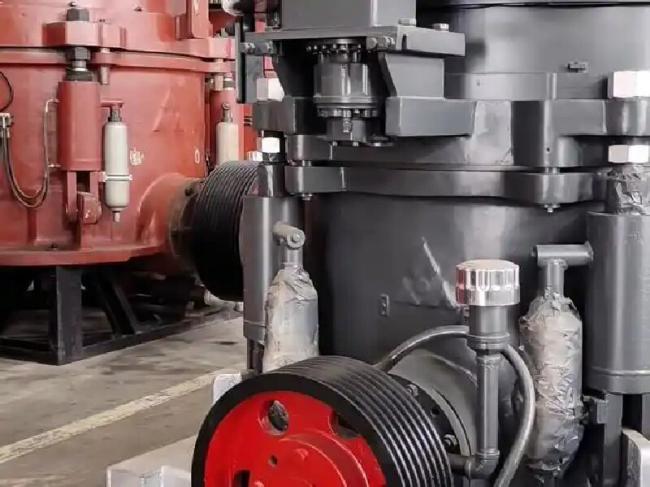

Product Display
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
