Large Single Cylinder Cone Crusher High Yield Crushing Capacity
High Yield Crushing Capacity Large Single Cylinder Cone Crusher
Overview
- Production Capacity: ≤500T/H
- Feed Size: ≤380mm
- Applicable Materials: Iron ore, copper ore, quartz, granite, basalt, diabase
- Application Fields: Metallurgical industry, construction industry, road construction industry, chemical industry, and phosphate industry.
The DP single-cylinder cone crusher is a crushing equipment used for mineral fine crushing operations. It is respectively used for coarse crushing, medium crushing, and fine crushing. It can crush materials to the required particle size range and meet customers' production capacity requirements.
- Uniform particle shape and high output
- Strong crushing capacity
- Continuous and stable operation, with automatic overload protection against iron impurities
- Rotating feeding device ensures even wear of liners
Product Parameters
| Model | DP100S | DP100 | DP430S | DP430 | DP440S | DP440 | DP660S | DP660 | DP870 |
| Weight (kg) | 7350 | 5700 | 12000 | 9200 | 19300 | 14300 | 35700 | 26800 | 49800 |
| Maximum maintenance weight (kg) |
2800 | 2000 | 5200 | 3000 | 8200 | 4800 | 16800 | 8600 | 13200 |
| Motor power (kW) |
90 | 90 | 132 | 132 | 220 | 220 | 315 | 315 | 500 |
| Model l | Cavity type | Maximum feeding size (mm) |
Discharge port (CSS) corresponding output (t/h) | ||||||||||||||
| 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 57mm | 64mm | 71mm | |||
DP100 |
M | 105 | 55-60 | 60-85 | 65-95 | 70-100 | 75-90 | ||||||||||
| MF | 85 | 45-50 | 50-70 | 55-80 | 60-85 | 65-90 | 65-80 | ||||||||||
| EF | 32 | 40-55 | 40-60 | 45-70 | 55-75 | 60-75 | 65 | ||||||||||
DP430 |
EC | 185 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208/ | 115-208 | ||||||||
| C | 145 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 | |||||||||
| MC | 115 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | |||||||||
| M | 90 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | |||||||||
| MF | 75 | 61 | 65-106 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | |||||||||
| F | 50 | 48-78 | 51-83 | 54--88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | ||||||||
| EF | 35 | 70-90 80% of them are smaller than 5mm-5.6mm | |||||||||||||||
DP440 |
EC | 215 | 114-200 | 122-276 | 131-294 | 139-313 | 159-357 | 175-395 | 192-384 | ||||||||
| C | 175 | 101 | 109-218 | 117-292 | 125-312 | 133-332 | 151-378 | 167-335 | 183-229 | ||||||||
| MC | 140 | 97-122 | 105-262 | 113-282 | 120-301 | 128-320 | 146-328 | 161-242 | |||||||||
| M | 110 | 117-187 | 126-278 | 136-298 | 145-318 | 154-339 | 175-281 | 194 | |||||||||
| MF | 85 | 114 | 124-227 | 134-245 | 144-263 | 153-281 | 163-299 | 186-248 | |||||||||
| F | 70 | 90-135 | 96-176 | 104-191 | 112-206 | 120-221 | 129-236 | 137-251 | 156-208 | ||||||||
| EF | 38 | 100-125 80% of them are smaller than 6mm-7.5mm | |||||||||||||||
DP660 |
EC | 270 | 177 | 190-338 | 203-436 | 216-464 | 246-547 | 272-605 | 298-662 | 328-511 | |||||||
| CX | 235 | 174-194 | 187-374 | 200-488 | 212-519 | 242-592 | 268-654 | 293-521 | 323-359 | ||||||||
| C | 215 | 171-190 | 184-367 | 196-480 | 209-510 | 238-582 | 263-643 | 288-512 | 317-353 | ||||||||
| MC | 175 | 162-253 | 174-426 | 186-455 | 198-484 | 226-552 | 249-499 | 273-364 | |||||||||
| M | 135 | 197-295 | 211-440 | 226-470 | 240-500 | 274-502 | 302-403 | ||||||||||
| MF | 115 | 192 | 207-369 | 222-396 | 237-423 | 252-450 | 287-451 | 318-363 | |||||||||
| F | 90 | 195-304 | 210-328 | 225-352 | 241-376 | 256-400 | 292-401 | 323 | |||||||||
| EF | 65 | 211-293 | 227-316 | 244-298 | 261-290 | ||||||||||||
DP870 |
EC | 300 | 448-588 | 477-849 | 544-968 | 601-1070 | 658-1172 | 725-1291 | 782-1393 | 849-1512 | 906-1331 | ||||||
| C | 240 | 406 | 433-636 | 461-893 | 525-1018 | 581-1125 | 636-1232 | 700-1357 | 756-1464 | 820-1461 | 876-1286 | ||||||
| MC | 195 | 380-440 | 406-723 | 432-837 | 492-954 | 544-1055 | 596-1155 | 657-1272 | 708-1373 | 769-1370 | 821-1206 | ||||||
| M | 155 | 400-563 | 428-786 | 455-836 | 519-953 | 573-1054 | 628-1154 | 692-1271 | 746-1372 | 810-1248 | 865-1098 | ||||||
| MF | 100 | 379-424 | 407-716 | 434-765 | 462-814 | 527-928 | 852-942 | 638-789 | 702 | ||||||||
| F | 90 | 357-395 | 385-656 | 414-704 | 442-752 | 470-800 | 535-912 | 592-857 | 649-718 | ||||||||
| EF | 80 | 280-405 | 304-517 | 328-558 | 352-598 | 376-639 | 400-680 | 455-775 | 503-758 | 551-669 | |||||||

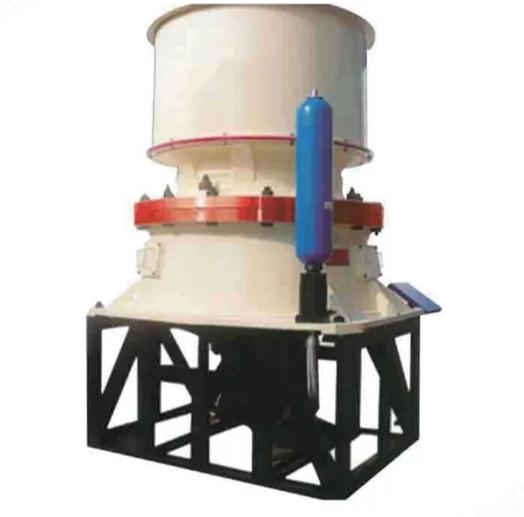

Product Display
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
