Special Fine Sand Recovery Device For Fine Particle Recovery Of Sand Gravel
Special Fine Sand Recovery Device For Fine Particle Recovery Of Sand And Gravel
Brief Introduction
1.The fine sand recovery device is widely used in water conservancy and hydropower, glass factories, the recovery of fine particles of sand and gravel in building materials, the recovery of coarse coal slime in coal preparation plants, and environmental protection projects (such as slurry purification, etc.).
2.Particle size ≤5mm
The Structure Of Ore Dressing Equipment

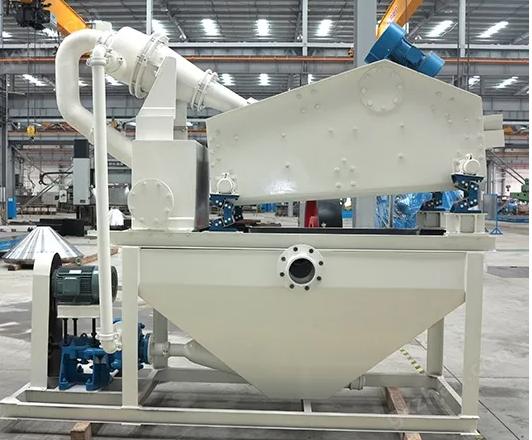

It is composed of a speed-regulating motor, a slurry pump, a cyclone, a ZKR linear vibrating screen, a washing tank, a return material box, etc.
Working process
The pump conveys the sand-water mixture to the cyclone. The fine sand that has been centrifugatively classified and concentrated is provided to the vibrating screen through the grit chamber. After dewatering by the vibrating screen, the fine particles are effectively separated from the water. A small amount of fine sand, mud, etc. pass through the return box to the washing tank. When the liquid level in the washing tank is too high, it is discharged through the discharge port. The weight concentration of the recovered materials by the linear vibrating screen is 70%-85%. The fineness modulus can be adjusted by changing the pump speed, altering the mortar concentration, regulating the overflow water volume, and replacing the sand outlet nozzle. Thus, the three functions of cleaning, dehydration and classification are accomplished.
Product parameters
| Model | Pump (power) | Swirler | Vibrating screen power(kw) | Processing capacity(m³/h) |
| HX22-30 | 15Kw | 300 | 2x3Kw | 50-120 |
| HX22-50(I) | 18.5Kw | 500 | 2x4Kw | 100-150 |
| HX22-50(II) | 22Kw | 600 | 2x4Kw | 120-230 |
| HX22-60(I) | 30Kw | 700 | 2x5.5Kw | 200-280 |
| HX30-60(II) | 37Kw | 700 | 2x5.5Kw | 250-300 |
Ore Dressing Equipment
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
