Special Equipment For Pulp Concentration In Metallurgical And Chemical Industry
Special Equipment For Pulp Concentration In The Metallurgical And Chemical Industry
Brief Introduction Of Ore Dressing Equipment

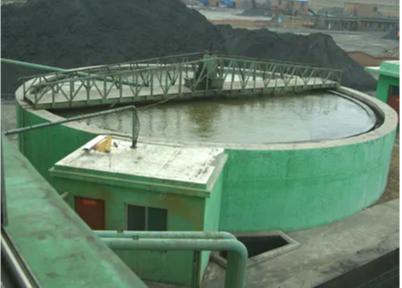

The high-efficiency thickener supplied by our company is suitable for the dewatering treatment of concentrate and tailings in mineral processing plants, increasing the slurry from 20-30% to about 40-70%. It is widely used in industries such as metallurgy, chemical engineering, coal, non-metallic mineral processing, and environmental protection.
The high-efficiency thickener is actually not a simple sedimentation device, but a new type of dewatering equipment that combines the filtration characteristics of the slurry layer.
The Features Of Ore Dressing Equipment
- Adding flocculants increases the particle size of the settled solid particles, thereby accelerating the sedimentation rate.
- Installing inclined plates shortens the settling distance of ore particles and increases the settling area;
- Give full play to the role of flocculation, filtration, compression and increase in processing capacity of the concentrated phase layer of mud deposition;
- It is equipped with complete self-control facilities.
Product Parameters Of Ore dressing equipment
| ITEM | Concentration basin(m) | Desilting area(m2) | Mention rake part | Motor | Processing capacity(t/d) | Weight (t) | |||||
| Model | Spec | Inner diameter | Depth | Floor of pool | Methods | Height (m) | One-turm time (min/r) | Drive | Lift | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Hand control | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.235 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Hand control | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 3.064 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 8.751 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 3.7 | Y90S-4 1.1KW | ---- | 62 | 3.649 | |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Automatic | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 6.134 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Hand control | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 5.146 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Hand control | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 8.51 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 21.757 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 24.504 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 31.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | Hand control | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW |
515 |
47.81 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW |
---- |
390 | 11 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 10 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 23.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 26.42 |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 55.26 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Automatic | ---- | 19.3 | Y160L-6 11KW |
---- |
2400 | 58.64 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6-15kw | ---- | 6250 | 79.80 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 |
---- |
---- |
43 | Y180L-6 15KW |
---- |
3030 | 199.648 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
