Heavy-Duty Apron Feeder With High Traction Power For Cement And Fertilizer Industries
Heavy-Duty Apron Feeder With High Traction Power For Cement And Fertilizer Industries
Apron feeder is a mechanical equipment for continuous material conveying, mainly used to continuously and evenly distribute and transfer materials to crushers, conveyors, or other working machines along horizontal or inclined directions.
Performance Characteristics
The traction chain adopts long-pitch plate-type pin-roller chain, with all chain components made of alloy steel materials. After scientific heat treatment, the chain features excellent wear resistance, high tensile strength, and long service life. The conveyor uses stamped troughs reinforced with horizontal ribs in the middle, ensuring good rigidity and high carrying capacity. The trough bottom plates are arc-shaped and lap-jointed to prevent material leakage. The drive motor uses variable speed motors, allowing adjustable operating speed for more reasonable selection of conveying capacity. Various layout forms are available, including horizontal, inclined layouts, and multiple horizontal-inclined combination layouts. The single-machine conveying length is ≤60m, and the lifting height is ≤30m. The maximum conveying inclination angle is 0-75 degrees. Material temperature should be ≤600℃.
Technical Parameters Of Conveying Hoisting Machine
| Model | width(mm) | Length(mm) | Speed(m3/h) | Feed Size(m/s) | Capacity(t/h) |
| WBQ500-2 | 500 | 2000 | 7-88 | 0.05-0.4 | 180 |
| WBQ500-3 | 3000 | ||||
| WBQ500-4.5 | 4500 | ||||
| WBQ500-6 | 6000 | ||||
| WBQ500-9 | 9000 | ||||
| WBQ500-12 | 12000 | ||||
| WBQ630-3 | 630 | 3000 | 11-175 | 0.04-0.4 | 200 |
| WBQ630-4.5 | 4500 | ||||
| WBQ630-6 | 6000 | ||||
| WBQ630-9 | 9000 | ||||
| WBQ630-12 | 12000 | ||||
| WBQF630-15 | 15000 | ||||
| WBQ800-3 | 800 | 3000 | 19-308 | 0.04-0.4 | 350 |
| WBQ800-4.5 | 4500 | ||||
| WBQ800-6 | 6000 | ||||
| WBQ800-9 | 9000 | ||||
| WBQ800-12 | 12000 | ||||
| WBQ800-15 | 15000 | ||||
| WBQ800-18 | 18000 |

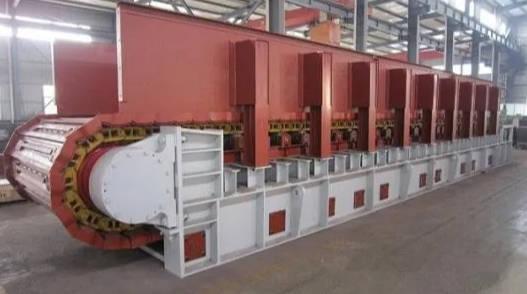

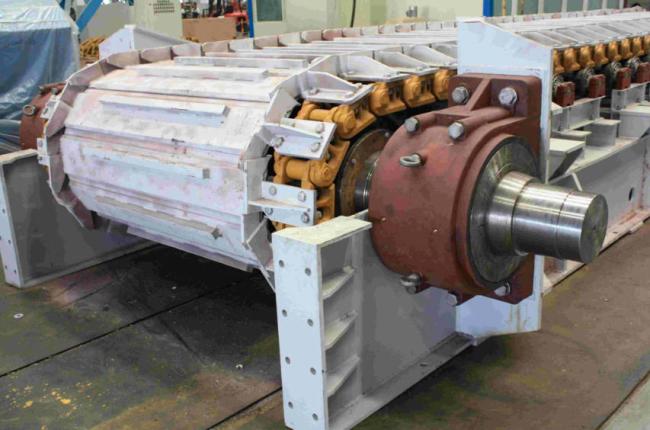

Product Display Of Conveying Hoisting Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
