Automatic Flipping Plate Of Filter Press, Hydraulic Drive Stainless Steel Filter Plate
Automatic Flipping Plate Of Filter Press, Hydraulic Drive Stainless Steel Filter Plate
Application Scope
Two coordinated flip plates are installed beneath the filter plate of the filter press. During filtration, they remain closed to direct dripping liquid or filter plate rinse water into the collection troughs on both sides. During discharge, they open to facilitate sludge removal.
Product Features
During filtration, the flaps remain closed, directing dripping liquid or filter plate rinse water into the collection channels on both sides. During discharge, they open to guide sludge out, preventing secondary contamination from liquid.
Product Parameters
| Model | MatcSna filter plate width(mm) | Weight(kg/m) | Motor Power(KW) | Speed (R/Min) | Dimensions(mm) | |||
| B | B1 | B2 | B3 | |||||
| FB800.00 | 800*800 | 305 | 0.37 | 0.58 | 600 | 848.4 | 1000 | 1350 |
| FB1000.00 | 1000*1000 | 513 | 0.37 | 0.58 | 800 | 1048.4 | 1300 | 1650 |
| FB1250.00 | 1250*1250 | 830 | 0.37 | 0.58 | 900 | 1148.4 | 1500 | 1850 |
| FB1500.00 | 1500*1500 | 1146 | 1.5 | 0.58 | 1000 | 1458.4 | 2000 | 2300 |
| FB2000.00 | 2000*2000 | 2160 | 1.5 | 0.58 | 1200 | 1658.4 | 2600 | 2900 |

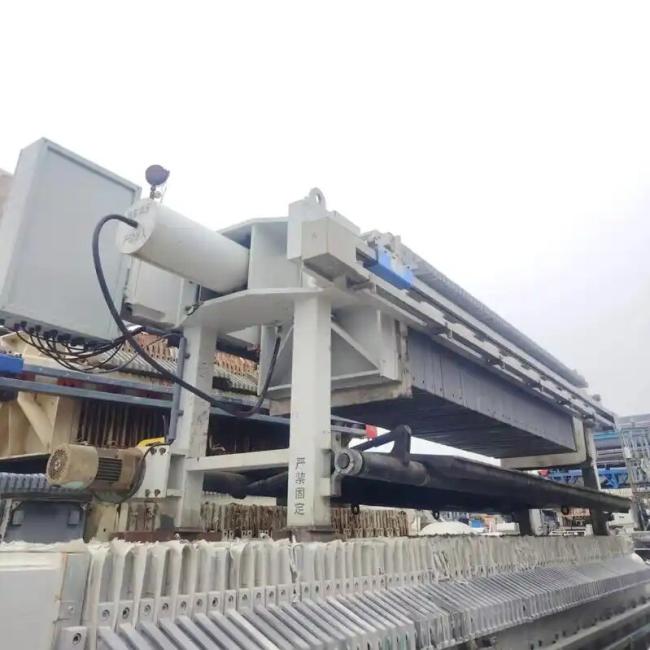

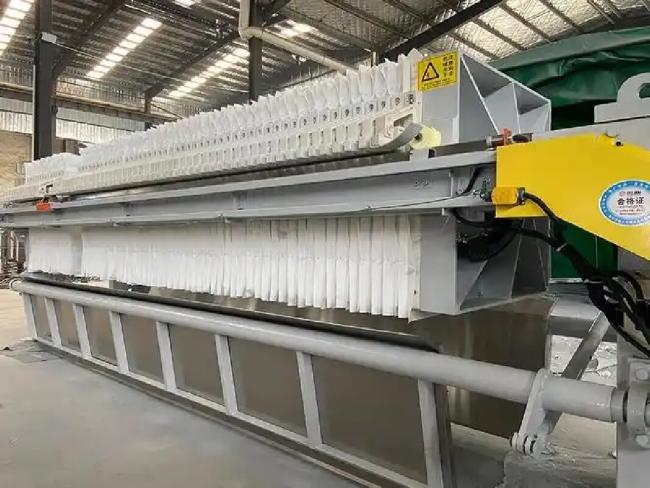

Product Display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
