High Flow Easy To Operate Multi Bag Filters

Price Negotiable

Price: negotiated

MOQ: 1set

Delivery Time: Negotiable

Brand: ZTIC

Product Description

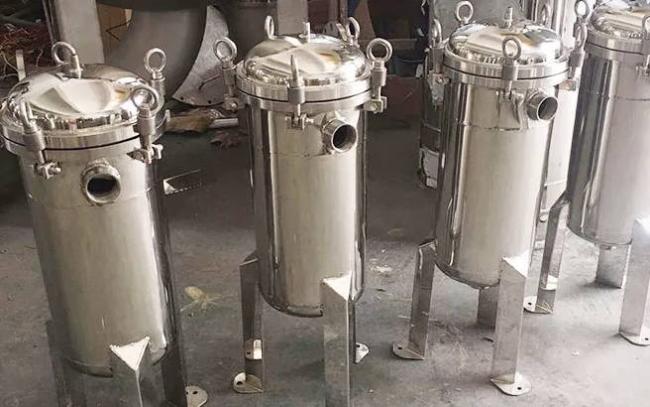

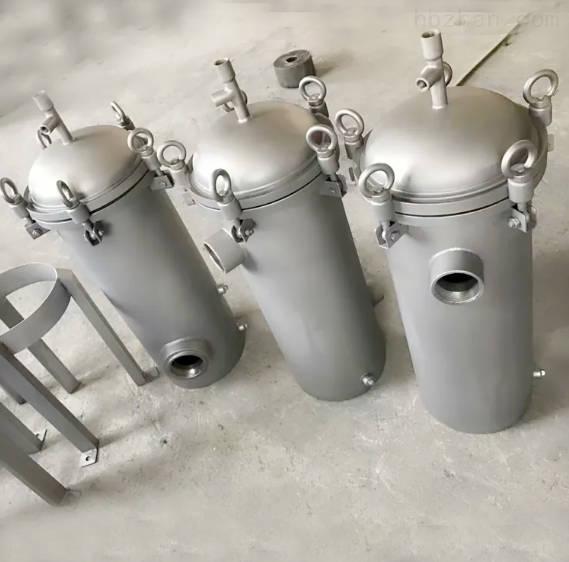

High Flow Easy To Operate Multi Bag Filters

Multi-bag filter is a pipeline treatment device designed to separate suspended particulate impurities from liquids and gases.

Applications

Chemical, pharmaceutical, food, environmental protection, and other industries.

Features

Multiple filter bags arranged in parallel, achieving uniform fluid distribution through top-entry liquid feed. Filtration precision ranges from 0.5 to 1200μm, with a maximum single-unit processing capacity of 1080m³/h.

Product Parameters of Ore Dressing Equipment

Filter cloth features

Model	Bag QTY	Filtering Area(㎡)	Max Flow(t/h)	Caliber(mm)	Working pressure(MPa)	Cylinder diameter(Ф)	Total Height(mm)	Housing Height(mm)	Center Distance of Foundation Bolts(mm)
DL-2P2S	2	1	70	DN50	0.5	456	1572	1144	616
DL-3P2S	3	1.5	105	DN80		508	1592	1190	668
DL-4P2S	4	2	140	DN100		558	1632	1244	718
DL-5P2S	5	2.5	175	DN150		608	1788	1254	768
DL-6P2S	6	3	210	DN150		658	1854	1300	818
DL-7P2S	7	3.5	245	DN150		710	1875	1340	870
DL-8P2S	8	4	280	DN150		760	1922	1404	920
DL-10P2S	10	5	350	DN200		910	2004	1430	1070
DL-12P2S	12	6	420	DN200		962	2064	1460	1132
DL-14P2S	14	7	490	DN200		1012	2124	1490	1212
DL-16P2S	16	8	560	DN250		1112	2146	1512	1312
DL-18P2S	18	9	630	DN250		1162	2225	1595	1360
DL-20P2S	20	10	700	DN250		1212	2280	1640	1412
DL-22P2S	22	11	770	DN250		1366	2320	1694	1516
DL-24P2S	24	12	840	DN300		1416	2358	1748	1616
