Environmentally Friendly Safe Easy To Maintain Raymond Mill
Environmentally Friendly Safe Easy To Maintain Raymond Mill
Structural advantages of Raymond mill
1. The main engine transmission system adopts a closed transmission device and pulleys to ensure smooth transmission and reliable operation.

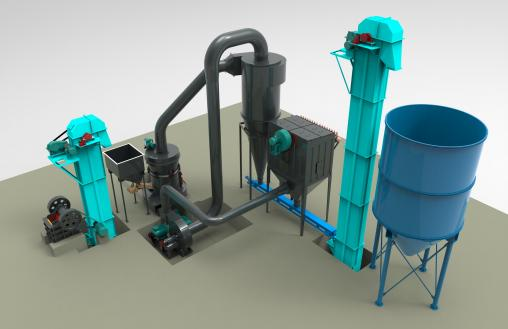

2. The entire factory has a vertical structure, which is highly systematic and occupies a small area. The crushing, grinding and packaging of raw materials are an independent production system.
3. The electronic control system is centralized and has a high degree of automation, requiring no personnel in the operating room.
4. The main components of the entire factory are made of high-quality steel castings. Exquisite craftsmanship ensures the durability of the entire factory.
5. Compared with other grinding equipment, its qualification rate reaches 99%, which cannot be achieved by other grinding machines.
Data parameters of Ore Grinding Mill
| Model | 6R4525 | 5R4119 | 4R3216 | 3R90 | 3R85 | 3R75 | 3R65 | 3R60 |
| 4R90 | 4R85 | |||||||
| Particle size of feed (mm) | ≤30 | ≤25 | ≤25 | ≤25 | ≤20 | ≤20 | ≤15 | ≤15 |
| Particle of finished product(mm) | 0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
0.125- 0.044 |
| shift output at different material fine degree(t) | 16-120 | 8-60 | 4-45 | 3-35 | 2-28 | 1.5-20 | 1-18 | 0.5-8 |
| Rotate speed of central shaft (r/min) | 82 | 105 | 130 | 160 | 160 | 160 | 180 | 280 |
| Inner diameter of pulverzing ring (mm) | 1770 | 1400 | 1073 | 973 | 885 | 865 | 725 | 495 |
| Diameter of pulverizing roller(mm) | 450 | 410 | 320 | 300 | 270 | 260 | 210 | 140 |
| Height of pulverizing ring(mm) | 250 | 190 | 160 | 160 | 150 | 150 | 150 | 100 |
| Main motor | y315m- 4-132 |
y280s- 4-75 |
y225s- 4-37 |
y225m- 8-30 |
y225m- 8-22 |
y225s- 8-18.5 |
y200L- 8-15 |
y160m- 6-7.5 |
| Fan motor | y315m- 4-132 |
y250m- 4-75 |
y200L- 4-37 |
y180m- 4-22 |
y160L- 4-15 |
y160L- 4-15 |
y160m- 4-11 |
y132s- 2-5.5 |
| Analyzer motor | y160m- 4-11 |
yc200- 4B-7.5 |
yc120- 4a-5.5 |
y112m- 6-2.2 |
y112m- 6-2.2 |
y112m- 6-202 |
y112m- 6-2.2 |
y90L- 6-1.1 |

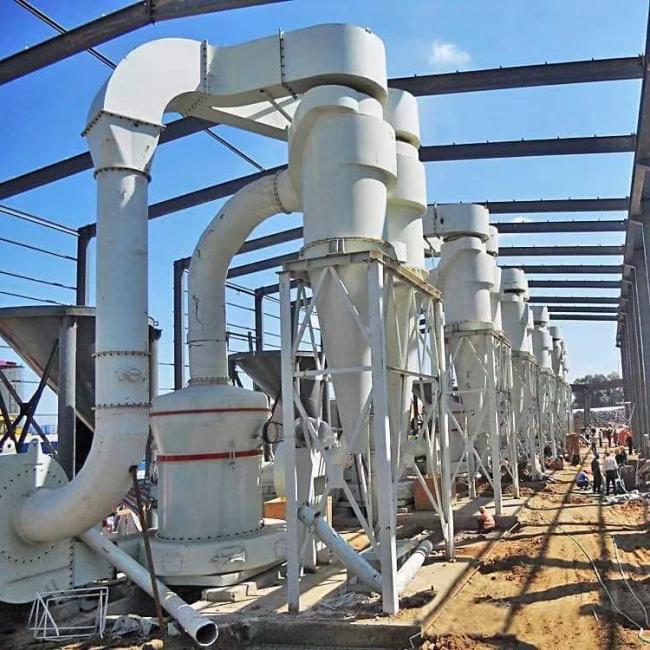

Product Display of Ore Grinding Mill
Ore Grinding Mill
Aftersales service
Luoyang Zhongtai Industries Able To Provide:
1. Engineered Spares - Design And Manufacturing
2. Large Volume Steel And Iron Casting Foundaries
3. Huge Machine Shop Capabilities
4. Training Programmes
5. Preventative Maintenance Programs
6. Prevetative Maintenance Services
7. Comprehensive Maintenance Programs
Luoyang Zhongtai Industries’S Field Service Engineers Are Trained Specifically In The Luoyang Zhongtai Industries Brand Group Products But Are Capable Of Undertaking The Servicing Of Other Oem Brands.
Our Technicians Are Equipped With The Most Advanced Technological Diagnostic Equipment Available To Trouble Shoot Your Equipment To Optimise Performance And Minimise Down Time.
Luoyang Zhongtai Industries Also Has An Extensive Capability In Supplying All You Consumable And Electrical/ Mechanical Spare Part Needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
