High Efficiency And Environmentally Friendly Fine Sand Recycling Device
High Efficiency And Environmentally Friendly Fine Sand Recycling Device
Fine sand recovery equipment is an environmentally friendly industrial device mainly used in hydropower station aggregate processing, artificial sand production lines, coal preparation plant coarse coal slime recovery, and slurry purification. Its core function is to solve the problems of fine sand loss and wastewater purification.
Working Principle
The workflow consists of three stages: First, a slurry pump transports the sand-water mixture to a hydrocyclone for centrifugal classification. The concentrated fine sand is then conveyed through a sand discharge nozzle to a dewatering screen for dewatering. A small amount of fine sand and mud is returned to the washing tank via a return box, forming a cycle. Ultimately, this achieves effective separation of fine sand and water.
Widely used in
Hydropower station aggregate processing systems;
Ceramic raw material dewatering processes;
Mineral processing plant tailings recycling and treatment;
Quartz sand processing systems;
River ecological restoration, etc.
5. Product parameters of Ore Dressing Equipment
| Model | Pump (power) | Swirler | Vibrating screen power(kw) | Processing capacity(m³/h) |
| HX22-30 | 15Kw | 300 | 2x3Kw | 50-120 |
| HX22-50(I) | 18.5Kw | 500 | 2x4Kw | 100-150 |
| HX22-50(II) | 22Kw | 600 | 2x4Kw | 120-230 |
| HX22-60(I) | 30Kw | 700 | 2x5.5Kw | 200-280 |
| HX30-60(II) | 37Kw | 700 | 2x5.5Kw | 250-300 |

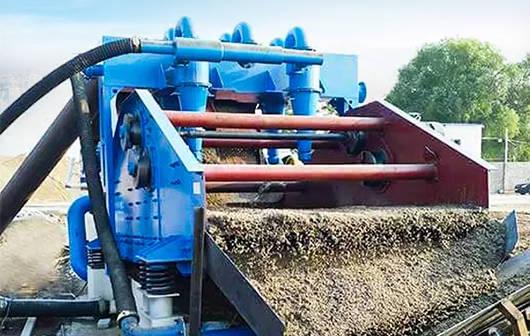

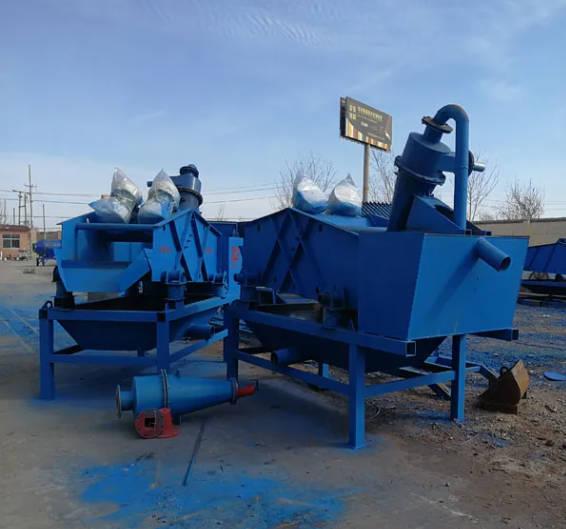

Product Display Of Ore Dressing Equipment
Ore Dressing Equipment
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
