Reliable Operation Stepless Speed Regulation GPY Series Disc Filter
Reliable Operation Stepless Speed Regulation GPY Series Disc Filter
The GPY series disc filter is primarily designed for solid-liquid separation of fine materials (0-0.5mm). It can be used for dewatering flotation clean coal and tailings, and can also be applied in metallurgy, chemical industry, petroleum, and wastewater treatment.
Working Principle
A pressure difference is created using a vacuum pump, causing the material to form a filter cake on the filter cloth, separating the liquid phase. After dewatering in the drying zone, the filter cake enters the blow-off zone where compressed air blows off a portion of the cake, and the remaining cake is scraped off by a scraper, completing one cycle.
Core Features
The transmission device is compact and reliable, supporting stepless speed regulation, and equipped with a torque-limiting coupling for overload protection.
The central shaft is a welded structure, lightweight, rigid, and with a large filtrate discharge capacity. The shaft bushing is made of SP composite material, which is wear-resistant and durable.
Equipped with star-shaped plastic sector plates and stainless steel wire woven filter cloth, it achieves excellent dewatering and cake removal effects, resulting in a low filter cake moisture content.
It uses a combination of air blowing and suspended scraper unloading, achieving a cake removal rate of over 90%, ensuring uniform stress on the filter discs and low operating load. The GPY20-120 series is compatible with the foundation and discharge port sizes of PG products, making it easy to upgrade existing plants.
Product parameters of Ore Dressing Equipment
| Unit | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | |
| Filter area | m2 | 40 | 60 | 80 | 100 | 120 |
| Dial Diameter | mm | 2700 | ||||
| Number of disk | 4 | 6 | 8 | 10 | 12 | |
| Spindle speed | r/min | 1-0.167 | 0966-0.215 | |||
| Main motor power | Kw | 2.2 | 4 | |||
| Speed of agitator | r/min | 73 | ||||
| Mixing motor Work rate | Kw | 2.2 | 4 | |||
| Feed size | Less than 0.063 mm fraction content is not more than 35-40% | |||||
| The material concentration | g/l | 250-350 | ||||
| Capacity | t/h | 8-12 | 12-18 | 16-24 | 20-30 | 24-36 |
| Product water | % | 22-24 | ||||
| Dimensions (L×W×H) | mm | 3217×3450×3275 | 4017×3450×3275 | 4817×3450×3275 | 5617×3450×3275 | 6417×3450×3275 |
| Weight | Kg | 5485 | 7736 | 8754 | 10099.4 | 11189 |

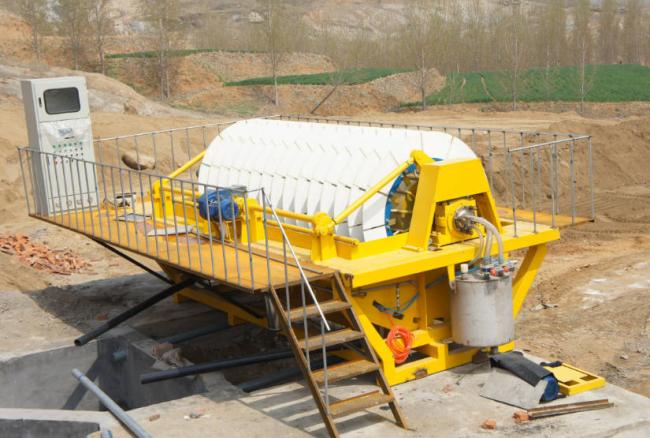

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
