High Efficiency Crushing And Stable Operation PSG Series Cone Crushers
High Efficiency Crushing And Stable Operation PSG Series Cone Crushers
The PSG series cone crusher is a high-performance, reliable, and cost-effective piece of equipment designed for large-scale crushing of medium to high-hardness ores and rocks.
The machine is built with high-quality materials and features an ingenious structural design, resulting in uniform and consistent product particle size and significantly reduced circulating load, thus improving production efficiency from the source. Large and medium-sized models are equipped with a multi-cylinder hydraulic clearing system, easily solving the problem of cavity clearing and reducing manual labor intensity; the innovative hydraulic disc spring cylinder + mechanical double locking mechanism makes the equipment more reliable and capable of handling challenging working conditions. The entire series offers multiple cavity options to precisely match the production needs of different users, enabling customized crushing solutions.
Advantages:
Multiple cavity options to meet diverse needs: Three exclusive crushing cavity types balance crushing efficiency, product particle shape, and wear part lifespan, easily handling different materials and capacity requirements.
Dry oil sealing and dustproof design extends equipment life: The unique sealing structure prevents dust intrusion, extends the lubrication oil change cycle, and significantly reduces the failure rate of core components.
High crushing force and high capacity, lower consumption and more economical: Special material key components + long crushing wall + large stroke design provide stronger crushing force and higher throughput; the optimized structural design significantly reduces the overall load on the machine, and coupled with convenient maintenance design, further reduces equipment operating costs.
Product parameters of Stone Crusher Machine
|
Spec |
Model |
Cavity type |
Diameter of large end of crushing cone(mm) |
Discharge port adjustment range |
The feeding size of the opening edge at the minimum discharge port(mm) |
Maximum feeding size |
Capacity (t/h) |
Main motor power(kw) |
Weight |
Dimension |
|
2'FT |
PSGB-0607 |
Standard fine type |
600 |
6-38 |
70 |
60 |
16-50 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGB-0609 |
Standard medium size |
600 |
10-38 |
95 |
80 |
18-65 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGB-0611 |
Standard coarse shape |
600 |
13-38 |
110 |
90 |
22-70 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGD-0603 |
Short head thin type |
600 |
3-13 |
35 |
30 |
9-35 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGD-0605 |
Short head thick type |
600 |
5-16 |
50 |
40 |
22-70 |
30 |
4500 |
2195×1158×1651 |
|
3'FT |
PSGB-0910 |
Standard fine type |
900 |
9-22 |
102 |
85 |
45-91 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGB-0917 |
Standard coarse shape |
900 |
13-38 |
175 |
150 |
59-163 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGB-0918 |
Standard extra thick type |
900 |
25-38 |
178 |
150 |
118-163 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGD-0904 |
Short head thin type |
900 |
3-13 |
41 |
35 |
27-90 |
75 |
10530 |
2656×1636×2241 |
|
3'FT |
PSGD-0906 |
Short head medium |
900 |
3-16 |
76 |
65 |
27-100 |
75 |
10530 |
2656×1636×2241 |
|
3'FT |
PSGD-0907 |
Short head thick type |
900 |
6-19 |
102 |
85 |
59-129 |
75 |
10530 |
2656×1636×2241 |
|
4.25'FT |
PSGB-1313 |
Standard fine type |
1295 |
13-31 |
137 |
115 |
109-181 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1321 |
Standard medium size |
1295 |
16-38 |
210 |
178 |
132-253 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1324 |
Standard coarse shape |
1295 |
19-51 |
241 |
205 |
172-349 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1325 |
Standard extra thick type |
1295 |
25-51 |
259 |
220 |
236-358 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1306 |
Short head thin type |
1295 |
3-16 |
64 |
54 |
36-163 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1308 |
Short head medium |
1295 |
6-16 |
89 |
76 |
82-163 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1310 |
Short head thick type |
1295 |
8-25 |
105 |
89 |
109-227 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1313 |
Short head extra thick type |
1295 |
16-25 |
133 |
113 |
209-236 |
160 |
22590 |
2983×1866×3156 |
|
5.5'FT |
PSGB-1620 |
Standard fine type |
1676 |
16-38 |
209 |
178 |
181-327 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1624 |
Standard medium size |
1676 |
22-51 |
241 |
205 |
258-417 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1626 |
Standard coarse shape |
1676 |
25-64 |
269 |
228 |
299-635 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1636 |
Standard extra thick type |
1676 |
38-64 |
368 |
313 |
431-630 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1607 |
Short head thin type |
1676 |
5-13 |
70 |
60 |
90-209 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1608 |
Short head medium |
1676 |
6-19 |
89 |
76 |
136-281 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1613 |
Short head thick type |
1676 |
10-25 |
133 |
113 |
190-336 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1614 |
Short head extra thick type |
1676 |
13-25 |
133 |
113 |
253-336 |
250 |
43870 |
3941×2954×3771 |

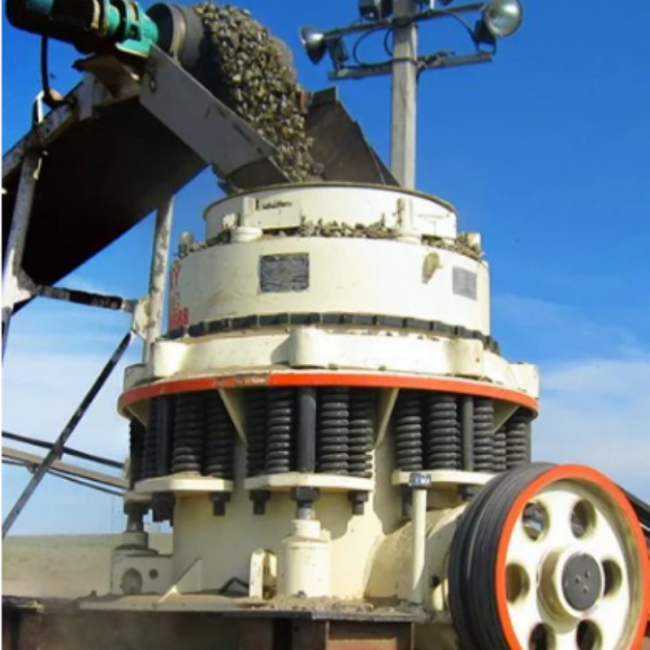

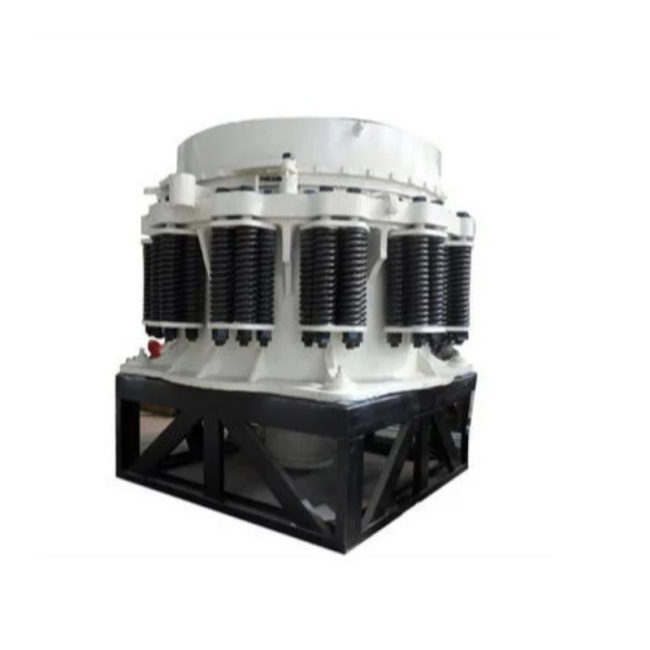

Product Display of Stone Crusher Machine
