Easy To Install Simple To Maintain GZG Series Self Synchronizing Inertial Vibrating Feeder
Easy To Install Simple To Maintain GZG Series Self Synchronizing Inertial Vibrating Feeder
The GZG series self-synchronizing inertial vibrating feeder has a wide range of applications, covering numerous industries including mining, metallurgy, coal, building materials, light industry, chemical, power, and grain. It is mainly used to uniformly, continuously, or quantitatively transport lumpy, granular, and powdery materials from storage silos and hoppers to receiving equipment. It is compatible with feeding and batching operations in crushing, coal preparation, screening, conveying, and packaging equipment.
The GZG series features a standard trough structure, suitable for feeding conventional materials without special operating conditions. The GZGF series adopts a closed trough design, specifically designed for conveying materials with high dust content and volatile properties, effectively reducing dust spillage and material volatilization.
This inertial vibrating feeder can be used with a reverse-connection brake control box, enabling rapid equipment shutdown and helping the feeder quickly pass through the resonance range, improving operational stability.
Product Features and Advantages
Compact size and lightweight design with a simple and compact structure; Easy installation and maintenance; Low operating costs; High working efficiency and strong feeding and conveying capacity; Low operating noise, helping to optimize the on-site working environment; Low energy consumption and excellent power factor; Designed to far exceed resonance conditions, ensuring stable amplitude, reliable operation, and strong adaptability to various materials; With the addition of a motor speed controller, stepless adjustment of the feeding rate can be achieved without adjusting the eccentric block, simplifying operation.
Product Parameters of Conveying Hoisting Machine
| Model |
Capacity (t/h) |
Feed size (mm) |
Power (kw) |
|
| Level | -10° | |||
| GZG40-4 | 30 | 40 | 100 | 2×0.25 |
| GZG50-4 | 60 | 85 | 150 | 2×0.25 |
| GZG63-4 | 110 | 150 | 200 | 2×0.50 |
| GZG70-4 | 120 | 170 | 200 | 2×0.50 |
| GZG80-4 | 160 | 230 | 250 | 2×0.75 |
| GZG90-4 | 180 | 250 | 250 | 2×0.75 |
| GZG100-4 | 270 | 380 | 300 | 2×1.5 |
| GZG110-4 | 300 | 420 | 300 | 2×1.5 |
| G2G140-6 | 400 | 470 | 300 | 2×2.2 |
| G2G180-6 | 450 | 520 | 300 | 2×2.2 |

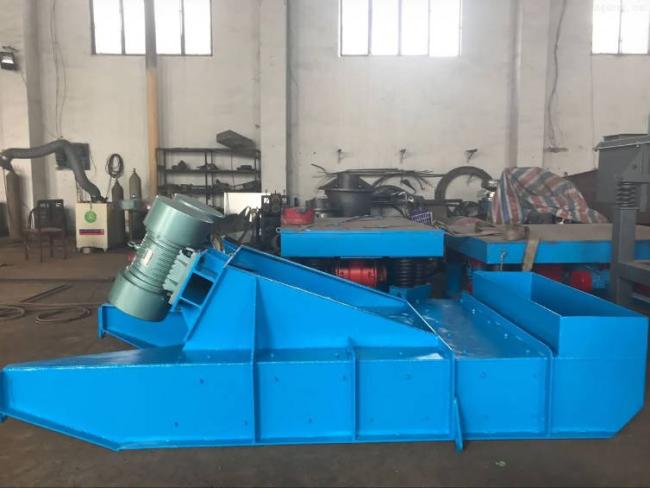

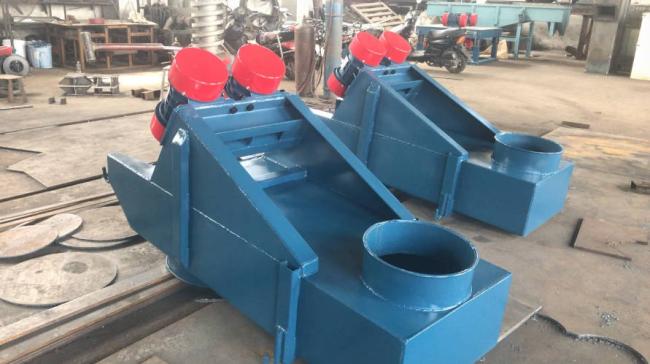

Product Display of Conveying Hoisting Machine
Conveying Hoisting Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
