High Wear Resistance And High Impact Crusher 30-800T/H Ore Grinding Mill
China manufacturer high wear resistance and high Crusher Impact

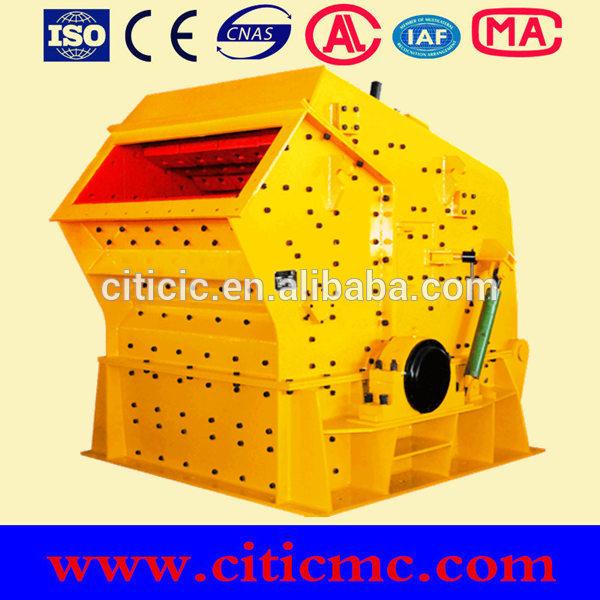

PF series impact crusher
This series of products can deal with the side length of 100 ~ 500 mm below the material, its compressive strength up to 350 mpa, with a large crushing ratio, broken materials into cubic particles and other advantages. This product can handle all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with side length not more than 500mm and compressive strength not more than 350MPa. It is widely used in hydropower, highway, artificial sand and stone, crushing and other industries.
- Seamless link, easy repair, low cost, reliable operation.
- High impact resistance, wear resistance, big impact force.
- Low wear rate, high comprehensive benefits.
Technical Parameters Of Impact Crusher
| Model | Specifications (mm) |
Feed opening (mm) |
Max.feeding side length (mm) |
Capacity (t/h) |
Power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 45-55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 315-400 | 50.6 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 700 | 600-800 | 630-710 | 83.21 | 4400×3866×4009 |
|
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time: A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms: A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs. |
