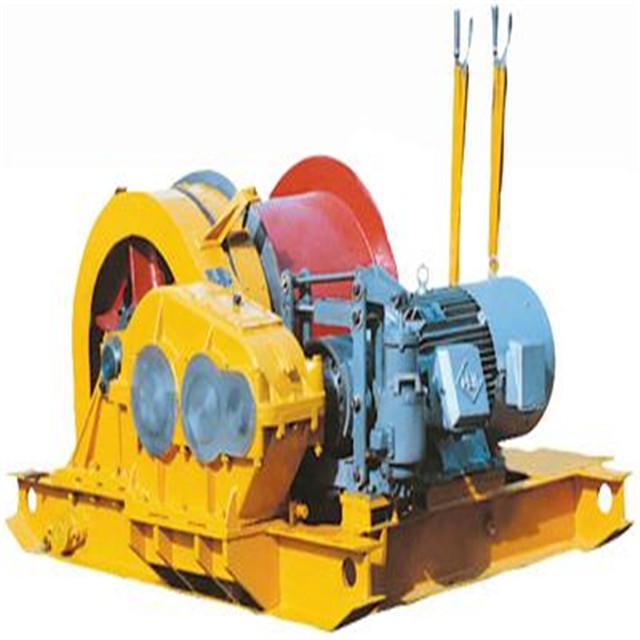

Double Tubular 2 Drum Coal Metal Ores Conveying Hoisting Machine
Mine hoist
| Model | Drum |
Tension PF |
Tension Differe (KN |
Rope Diameter (mm) |
Capatiy(m) |
Max Speed |
Reduce speed ratio |
Motor Speed |
||||
|
N u m b e r |
Dia | Widlth | One-laye | Two-laye | Three-laye | |||||||
| m | kN | mm | m | m/s | r/min | |||||||
| JK-2×1.5/20 | 1 | 2.0 | 1.5 | 62 | 24 | 305 | 650 | 1025 | 5.2 | 20.0 | 1000 | |
| JK-2×1.5/31.5 | 31.5 | |||||||||||
| JK-2×1.8/20 | 1.80 | 375 | 797 | 1246 | 20.0 | |||||||
| JK-2×1.8/31.5 | 31.5 | |||||||||||
| JK-2.5×2/20 | 2.5 | 2.00 | 83 | 28 | 448 | 945 | 1475 | 5.0 | 20.0 | 750 | ||
| JK-2.5×2/31.5 | 31.5 | |||||||||||
| JK-2.5×2.3/20 | 2.30 | 525 | 1100 | 1712 | 20.0 | |||||||
| JK-2.5×2.3/31.5 | 31.5 | |||||||||||
| JK-3×2.2/20 | 3.0 | 2.20 | 135 | 36 | 458 | 966 | 1513 | 6.0 | 20.0 | |||
| 2JK-2×1/11.2 | 2 | 2.0 | 1.00 | 62 | 40 | 24 | 182 | 406 | 652 | 7.0 | 11.2 | |
| 2JK-2×1/20 | 20.0 | |||||||||||
| 2JK-2×1/31.5 | 31.5 | |||||||||||
| 2JK-2×1.25/11.2 | 1.25 | 242 | 528 | 838 | 11.2 | |||||||
| 2JK-2×1.25/20 | 20.0 | |||||||||||
| 2JK-2×1.25/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.2/11.2 | 2.5 | 1.20 | 83 | 65 | 28 | 843 | 8.8 | 11.2 | ||||
| 2JK-2.5×1.2/20 | 20.0 | |||||||||||
| 2JK-2.5×1.2/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.5/11.2 | 2.5 | 1.50 | 83 | 65 | 28 | 319 | 685 | 1080 | 8.8 | 11.2 | ||
| 2JK-2.5×1.5/20 | 20.0 | |||||||||||
| 2JK-2.5×1.5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.5/11.2 | 3.0 | 135 | 90 | 36 | 289 | 624 | 994 | 10.5 | 11.2 | |||
| 2JK-3×1.5/20 | 20.0 | |||||||||||
| 2JK-3×1.5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.8/11.2 | 1.80 | 362 | 770 | 1217 | 11.2 | |||||||
| 2JK-3×1.8/20 | 20.0 | |||||||||||
| 2JK-3×1.8/31.5 | 31.5 | |||||||||||
| 2JK-3.5×1.7/11.2 | 3.5 | 1.70 | 170 | 115 | 40 | 349 | 746 | - | 12.6 | 11.2 | ||
| 2JK-3.5×1.7/20 | 20.0 | |||||||||||
| 2JK-3.5×2.1/11.2 | 2.10 | 450 | 950 | - | 11.2 | |||||||
| 2JK-3.5×2.1/11.2 | 20.0 | |||||||||||
| 2JK-4×2.1/10 | 4.0 | 245 | 160 | 48 | 421 | 891 | - | 12.6 | 10.0 | 600 | ||
| 2JK-4×2.1/11.2 | 11.2 | |||||||||||
| 2JK-4×2.1/20 | 20.0 | |||||||||||
| 2JK-5×2.3/10 | 5.0 | 2.30 | 280 | 180 | 52 | 533 | - | - | 12 | 10.0 | 500 | |
| 2JK-5×2.3/11.2 | 11.2 |
|||||||||||
|
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2. We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q: Delivery time: A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms: A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty? A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs. |
