120 MT Cement Ball Mill Girth Gear Machine Parts And Spur Gear And Ring Gear
Price:
negotiable
MOQ:
1 Sets
Delivery Time:
Negotiable
Brand:
CITIC
Product Description
Products Description

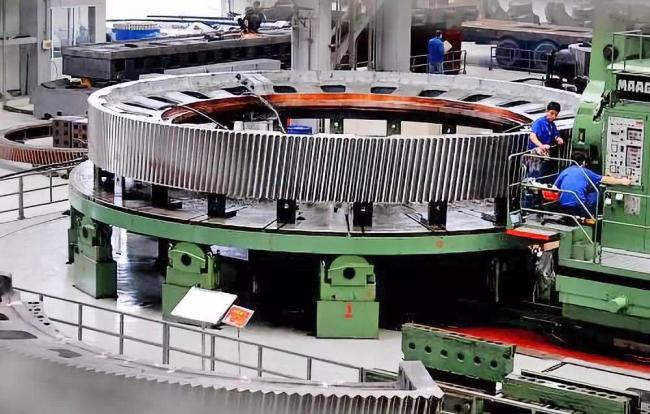

Girth gear
| Product Name | Steel girth spur gear |
| Weight | Max 120 MT single piece |
| Applications | industries |
| Module Range | 10 Module to 70 Module. |
| Diameter | Min 100 mm to16000 mm. |
| Weight | Max 120 MT single piece. |
| Gear Cutting Capacity | 100mm diameter to 16000mm diameter,10Module to 70Module |
| External teeth | |
| Maximum diameter | 16000 mm |
| Toothed face width | 1700 mm |
| Maximum module | 45 by hob |
| Maximum module | 65 gear finishing cutter |
| Internal teeth | |
| Maximum Diameter | 6500 mm |
| Maximum module | 25.4 |
| Toothed face width | 400 mm |
|
Standards/Certificates
• UNI EN ISO • AWS • ASTM • ASME • DIN |
Spur Gear And Ring Gear
Spur Gear And Ring Gear
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
Spur Gear And Ring Gear
