Forging Spur 34CrNiMo6 Metal Spur Gear And Pinion Gear Factory Price
Manufacturer pruduce wide varieties metal small spur gear
Small pinion gear offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers.
Pinion for:-
- Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD

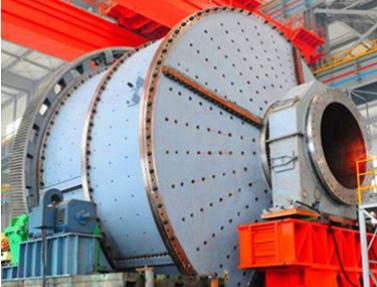

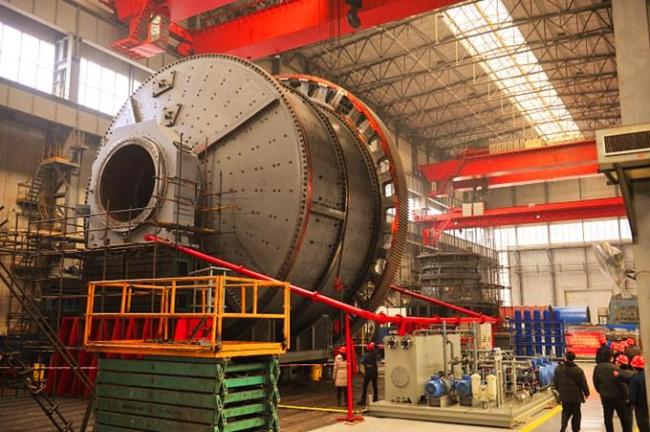

- Integral pinion shaft for cement plant or ball mills
- Pinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plant
- Kiln Pinion
- Cooler pinion
- Pinion shaft
- Pinion assembled with shaft, bearings, plummer blocks
- Integral pinion shaft upto 3 mtr total lentgh.
|
Specification |
Machining Scope |
|
Size |
OD Max 16m |
|
One Piece of Gear: OD Max 13m |
|
|
Assemble Gear: According to drawings |
|
|
Hobbing Modulus |
10-60 |
|
Milling Modulus |
Up to 120 |
|
Spiral Modulus |
1-15 |
|
Accuracy Grade |
Milling: 6 grade |
|
Hobbing: 8 grade |
|
|
Material |
Alloy steel: 42CrMo4, 34CrNiMo6 etc. |
|
Carbon steel: C45E, 1030 |
|
|
Carburizing steel |
|
|
Quenched and tempered steel |
|
|
Heat treatment |
Quenching&Tempering, Surface Quenching |
Spur Gear And Pinion Gear
Pinion gear material
42CRMO STEEL DATA
CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%
Mo: 0.15-0.25%
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃
Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃
linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K
Spur Gear And Pinion Gear
| item | description |
| normal pinion gear materials | 42crmo, 35sinm, 45 steel |
| better pinion gear materials | 17crnimo6, 20crmnmoA |
Spur Gear And Pinion Gear

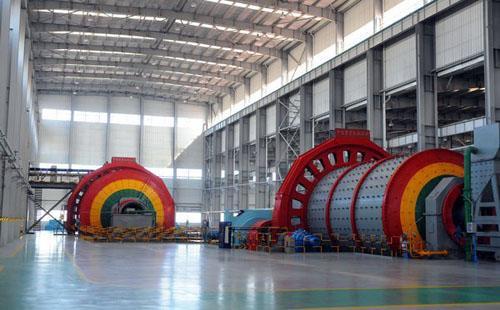

company show
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
