CITIC HIC Machine Parts Flame Retardant Plastic with MYK MAYK GL PVC
| Flame retardant MYK MAYK GL-PVC |
Product Description
Flame retardant MYK MAYK GL-PVC
Our company produces the hanging type cable hook,which can be flexibly used according to the erection of cable.When setting up, removing, adding, and replacing the cable, that can achieve time saving and labor saving. We currently are the most ideal ending erection attachment of the mining setting up cable.
Flame retardant MYK MAYK GL-PVC
The series hanging connection type cable hook can replace the steel used as the cable hook and the corresponding supporting piece, which is suitable for the installation of cables in mine, ground and underground.
China Plastic Cable Hook for Coal Mine
1. The load bearing of hook is not less than 210kg
2. Curved hook bearing is50 kg and straight rod section deflection is less than 10 mm
Mining hoist part for plastic Cable hook feature
1. It can be used flexibly according to the number of cable erection
2. Fracture resistance and bending strength performance are good. And it isn’t easy for aging. light weight, corrosion resistance and low cost
3. The structure is simple. Convenient to use, safe and reliable.

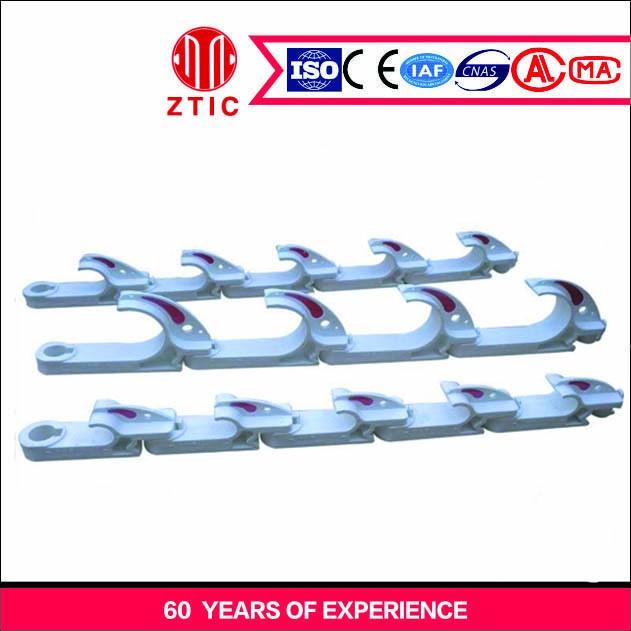

coal mine plastic cable hook
China Plastic Cable Hook for Coal Mine Features
1. Coal mining Plastic Cable Hook Hanger Appliance
1) the number of each unit can be easily linked in series more than 10.
2) To improve the quality of suspension, straight bar segments linked to the best close to the wells in
the rest closed, If you can not do, should decrease or increase the number of cell groups in series.
3) prohibited the construction workers to jump way cable quick volley into the curved hook, curved
hook at the moment may increase the human body to withstand the weight of the cable, resulting in
fracture.
4) Check the cable into the curved hook the whole, the construction workers before they can release the cable.
2.Coal mining Plastic Cable Hook Hanger Feature
Linked flame retardant (s)
1) flame burning time (average) ≤ 3
2) the flame burning time (max) ≤ 10
3) No flame burning time (average) ≤ 10
4) No flame burning time (max) ≤ 30
| Product Name | Mining cable hook |
| Material | PVC |
| Product features | Stable of antistatic and flame retardant performance,light weight,anti-aging,anti-corrosion,anti-swing,health and environmental protection |
| Product specifications |
OD (max) 18 28 38 50 58 68 80 100 120 3 hooks, 5 hooks, 6 hooks, 8 hooks, 10 hooks, 11 hooks, water bag hooks, fixed buckles,etc. |
| Product parameters |
Hook load ≥350 KG Antistatic value≥3*10 Ω Flame burning time (average value)≤3 seconds Flame burning time (max)≤10 seconds Flameless burning time (average value)≤10 seconds Flameless burning time (max)≤ 30 seconds |
