Horizontal Centrifuge 0.5mm~50mm Ore Dressing Equipment
TWZ series 0.5mm~50mm horizontal Centrifuge with good dehydration effect

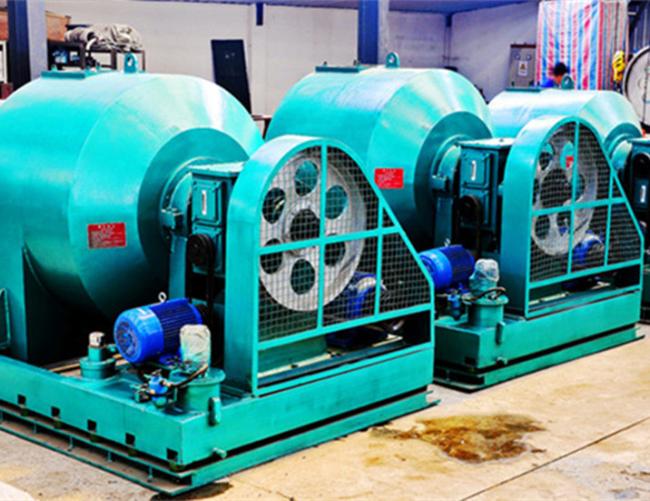

Horizontal Centrifuge
The series product has sieve basket diameter of 850mm~1,500mm, and is mainly used for dehydration of blocky clean coal, middlings and other similar materials, with 0.5mm~50mm designed feeding granule. It has advantages of small initial investment and floor area, low energy consumption, good dehydration effect, low coal crushing rate, long sieve basket life, convenient operation and maintenance and low noise, and sieve interval of 0.25, 0.3, 0.35, 0.5, etc.
TWZ series horizontal vibrating centrifuge technology features:
| Parameters | Unit | Model | ||||||
| TWZ850 | TWZ10A | TWZ1150 | TWZ1300 | TWZ1400 | TWZ1500 | |||
| Feed size | mm | ≤ | 0～25 | 0.5～50 | 0～50 | ≤50 | 0.5～50 | |
| Capacity | t/h | 30～50 | 50～100 | 100～150 | 180～250 | 200～300 | 250～350 | |
| Product water | % | 5～9 | ||||||
| sceen bowl big end diameter | mm | 850 | 1000 | 1150 | 1300 | 1400 | 1500 | |
| Seam screen size | mm | 0.25,0.3,0.35,0.5 | ||||||
| Screen vibration frequency | Hz | 25 | 25 | 25 | 25 | 25 | 25 | |
| double-amplitude | mm | 4～6 | 4～6 | 4～6 | 4～6 | 4～6 | 4～6 | |
| Main motor power | Kw | 15 | 22 | 37.5 | 45 | 55 | 75 | |
| Vibration motor power | Kw | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Oil pump motor power | Kw | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | |
| Dimension | L | mm | 2060 | 2150 | 2800 | 2700 | 3100 | 3170 |
| W | mm | 1510 | 1875 | 1930 | 2260 | 3090 | 2975 | |
| H | mm | 1652 | 1765 | 1930 | 2245 | 2295 | 2400 | |
| Weight | Kg | 2500 | 2620 | 5527 | 6500 | 9200 | 10000 | |
Note: TWZ series horizontal vibrating centrifuge external water related to material properties, particle size composition, processing, but mainly depends on the material content of coal slime. Into the material - 0.5 mm size content < 10%, TWZ series horizontal vibrating centrifuge external water for 5 ~ 9%.
