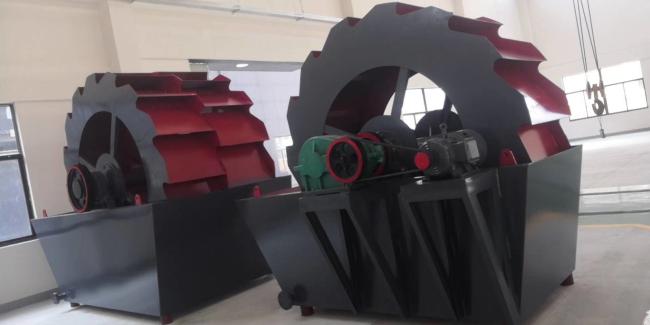

15-200 t/h Efficient Sand Washer Simple structure stable operation

The sand washer is the washing equipment for artificial sand, can be divided into two types: XS type and XL type. It can remove the impurities that cover in gravel surface, while undermining the vapor layer which coats sand, so that facilitate dehydration and play an efficient sand washing and cleaning effect, therefore, it is widely used in gravel pits, mining, building materials, transportation, chemical industry, water conservancy and hydropower and concrete mixing station to wash materials.

Working principle:
When sand washing machine is working, the motor drives impeller running slowly through V-belt and reducer; the sand are fed from feed trough to wash tank, then roll driven by impeller and grind each other to remove the impurities that cover in gravel surface and undermine the vapor layer that coats sand, so that facilitate dehydration; meanwhile, add water to form strong currents to timely take away impurities and foreign body of small proportion and discharge them from outlet. The clean gravels are taken away by the blades and poured by the rotation of impeller into the discharge chute to complete the entire cleaning action.

Sand Washer Structural features

1, simple structure, stable operation.
2, bearings are separated from water and materials, avoiding machine prematurely causes damage phenomenon due to rust.
3, wide range of application.
4, less material loss, high washing efficiency, can fully meet the requirements of high-grade materials.
5, long service life.
6, less maintenance, greatly reducing the cost.
