Customized Large Sized 1191mm 46.89" Slewing Ring Bearing With ISO/CE Certificate

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 30 days
Brand: ZTIC
Product Description

Customized large-sized Slewing Ring Bearing with ISO CE Certificate

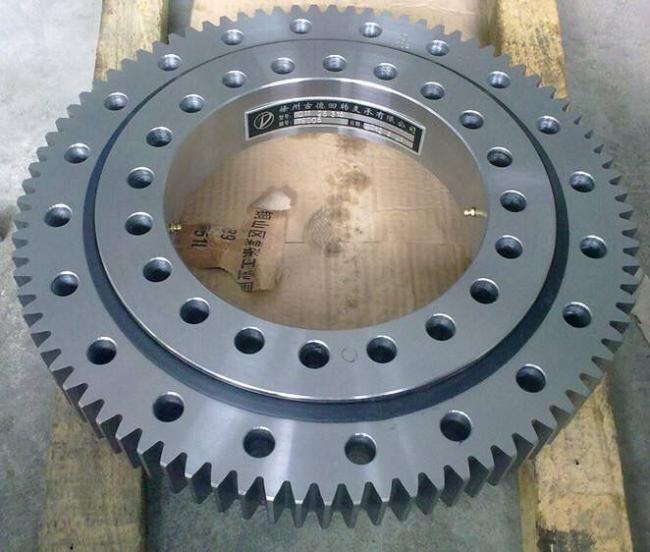

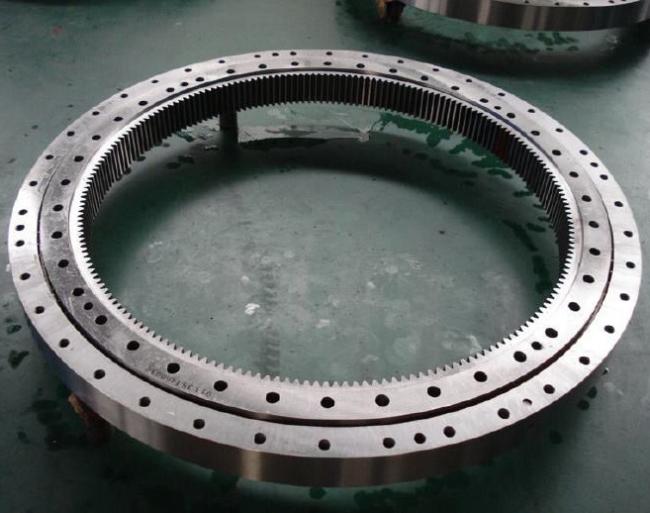

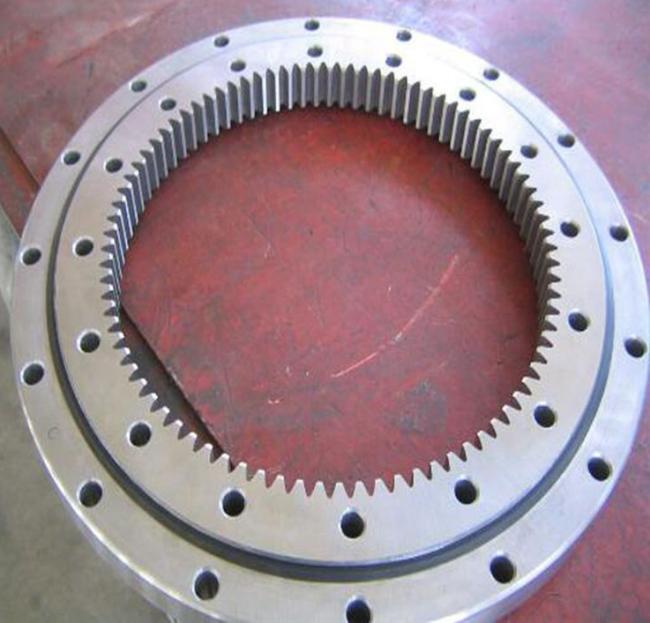

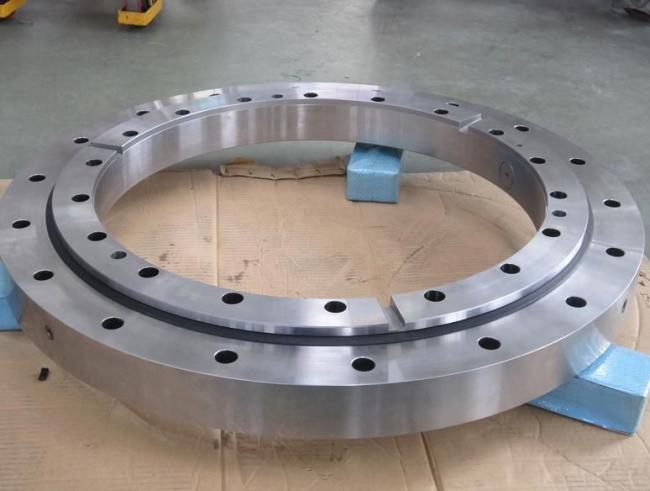

Slewing bearings are large-sized bearings which can accommodate a combined load, i.e., radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition, they often enable the elimination of many components necessary in the classical bearing arrangement.



Slewing Ring Bearing

Slewing Bearing Details As Below:

Product Name
Custom Large Slew Ring Bearing
Model Number
EGSBM 1191 984 56 SSE
Reference Number
PSL 9E-1B20-0223-0287/ Rotek L6-43E9Z
Gear Option
External Geared
Application
for Mining machine
Seal Type
Rubber Sealed
Features
Single Row Ball Slewing Bearing
Brand
ZTIC
Outer diameter:
1191 mm (46.89")
Inner diameter:
984 mm (38.74")
Height:
56 mm (2.2")
Axial play:
0.04 mm~0.11 mm
Radial play:
0.06 mm~0.15 mm
Core hardness:
245-275 HB Quenching and Tempering
Raceway Hardness:
55 ~ 60 HRC Quenching
Raceway Hardness Effective Depth
≥2.5 mm
Material:
GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)
Standard
EN 10204 2.2; EN 10204 3.1.B ; EN10204 3.1.C
Heat treatment
Quenching and tempering,
Raceway induction quenching
Operating Temperature
-40°C to +50°C
Grease
EP2 lubricating lithium grease
Weight
78.7 KGS
Place of Origin
Luoyang, Henan, China
Certificate
API Q1 Certificate (American Petroleum Institute) Quality Assured Firm
Qualified to be used in Petroleum machinery equipment.
ISO9001:2008 Certificate
Services
OEM Service, Customized Service, Design Service



FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

    2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

    3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.



Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.



Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.
