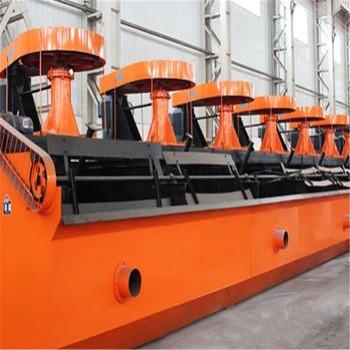

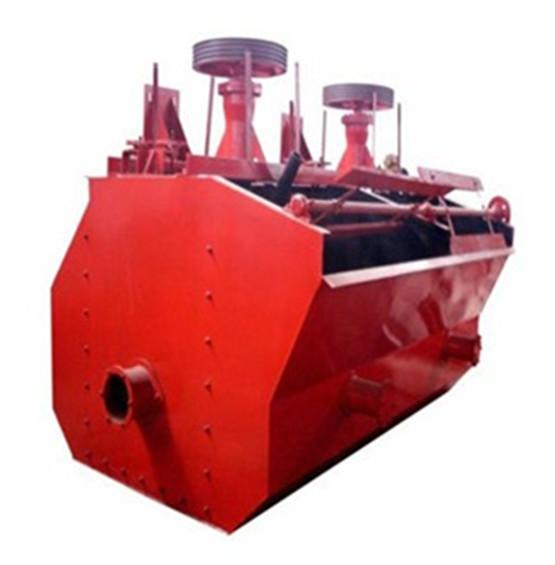

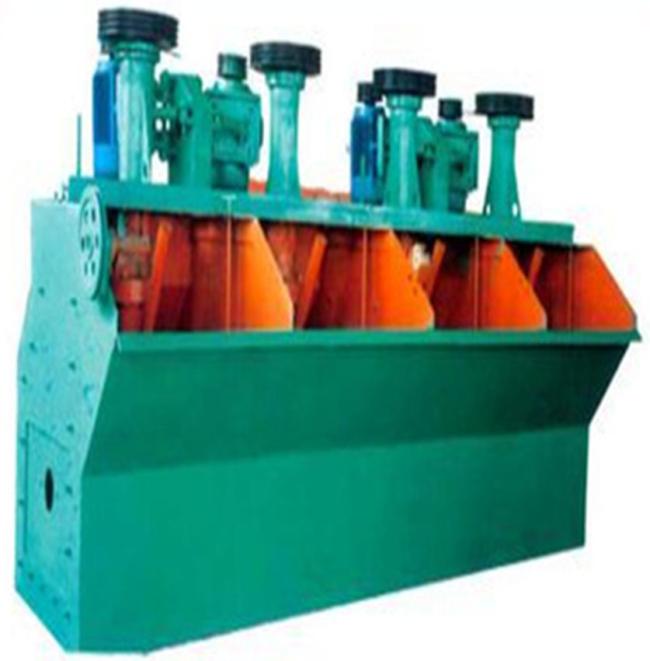

536R/MIN Mineral Ore Dressing Equipment Flotation Machine
Mineral Ore Dressing Plants Good Performance Flotation Machine
Application of Flotation Machine
Flotation machine are mainly used in mineral ore dressing plants, selecting the valuable mine from gangue. It is applicable for the separation of numerous of mineral ores, such as fluorite and talc, gold ore, copper ore, iron ore and zinc ore and so on.
Working principle
The impellers are driven through V-belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry. On the other hand, it stirs ore slurry and mix with medication to form the mineralized forth. To adjust the height of the flashboard to control the liquid level and make the useful froth scraped by loam board.
Features of Flotation Machine
1. Large air-absorption capacity and low energy consumption
2. Optimistic structure design & Excellent performance
3. Reasonable circulation of mineral slurry
4. Automatic control Easy to adjust
Technical Parameters
| SF Model | Diameter (mm) | Rotational Speed (r/min) | Capacity (m³/min) | Main Motor | Scraper Motor | Size (mm) | ||
| Model | Power (kw) | Model | Power(kw) | |||||
| SF0.15 | 200 | 536 | 0.06-0.18 | Y100-6 | 1.5 | Y80L-4 | 0.55 | 500×500× 600 |
| SF0.37 | 296 | 386 | 0.2-0.4 | Y90L-4 | 1.5 | Y80L-4 | 0.55 | 700×700× 750 |
| SF-1.2 | 450 | 312 | 0.6-1.2 | Y32M-6 | 5.5 | 90S-4 | 1.1 | 1100×1100× 1100 |
| SF-2.8 | 550 | 268 | 1.5-3.5 | Y180L-6 | 11 | Y100L6 | 1.5 | 1700×1600× 1150 |
| SF-4 | 650 | 220 | 2-4 | Y200L-8 | 15 | Y100L6 | 1.5 | 1850×2050× 1200 |
| SF-8 | 760 | 191 | 4-8 | Y250M8 | 30 | Y100L6 | 1.5 | 2200×2900× 1400 |
| SF-10 | 760 | 191 | 5-10 | Y250M8 | 30 | Y100L6 | 2.2 | 2200×2900× 1700 |
| JIF-4 | 410 | 305 | 2-5 | Y160L-6 | 11 | Y100L6 | 1.5 | 1600×2150× 1250 |
| JIF-8 | 540 | 233 | 4-10 | Y200L26 | 22 | Y100L6 | 1.5 | 2200×2900× 1400 |
| JIF-10 | 540 | 233 | 4-12 | Y200L26 | 22 | Y100L6 | 2.2 | 2200×2900× 1700 |
