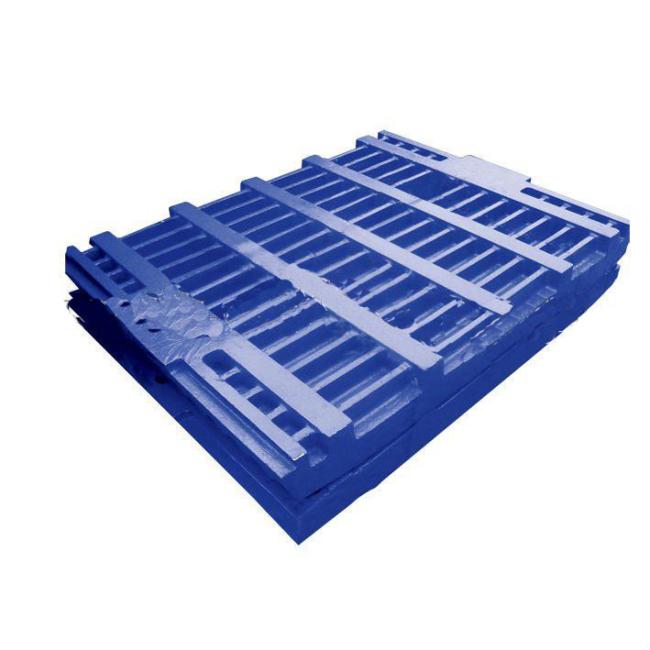

High Impact Toughness Mn13Cr2 swing jaw plate jaw crusher wear plates
Price:
negotiable
MOQ:
1 set
Delivery Time:
1-2 months
Brand:
ZTIC
Product Description
high impact toughness and wear resistance jaw plate for jaw crusher
Manufacturing detail of jaw crusher fixed jaw plate:
| High manganese jaw plate | |
| Name | Jaw plate, swing jaw plate, fixed jaw plate, toggle plate,movable jaw,fixed jaw,jaw crusher jaw |
| Material | Mn13Cr2( M1 equivalent grades),Mn18Cr2(M2 equivalent grades) |
| Control | Spectrometer chemical analysis and control while producing |
| Molding Process | Water-glass sand casting or lost form casting |
| Melting facility | Medium frequency electric furnace |
| Heat Treatment | Anneal, quenching, tempering |
| Quality Guarantee | One year against manufacturing defeat |
| Testing | Hardness, flaw detector test |
| Certificate | ISO9001~2008 Passed; BUREAU VERITAS |
| Application | Cement firms, coal fired power plant ,mining firms ,metallurgy ,quarry firms |
Chemical Component of jaw crusher fixed jaw plate:
| Material | Chemical Composition(%) | Mechanical Property | ||||
| C | Si | Mn | Cr | Ak/cm | HB | |
| Mn13Cr2 | 1.1~1.4 | 1.7~2.2 | 12~15 | 1.7~2.2 | >140 | ≤220 |
| Mn18Cr2 | 1.1~1.4 | 1.7~2.2 | 17~19 | 1.8~2.2 | >140 | ≤230 |
Description of jaw crusher fixed Jaw Plate
Jaw crusher wear parts is mainly used for crushing brittle materials, which stress usually less than 200Mpa, such as iron ore, gold ore, molybdenum ore, limestone and dolomite and etc. In the construction industry, it is mainly used for crushing limestone, cement clinker, gypsum and sandstone. Jaw crushers wear parts plate is the main wear parts of jaw crushers and need to withstand moderate impact while working. So the jaw plate requiring high impact toughness and wear resistance. The high manganese steel series material is the only choice for producing the jaw plates of primary jaw crusher and small jaw crusher .
Popular type of jaw crusher fixed jaw plate:
| Type | size(mm*mm*mm) | weight(kg) | tooth number |
| 100*600(swing plate) | 595*305*40 | 38 | 23 |
| 100*600(fixed plate) | 636*267*44 | 40 | 24 |
| 150*750(swing plate) | 750*480*72 | 115 | 24 |
| 150*750(fixed plate) | 805*430*60 | 100 | 25 |
| 250*1000(swing plate) | 1000*790*95 | 350 | 24 |
| 250*1000(fixed plate) | 1055*700*95 | 312 | 25 |
| 250*1200(swing plate) | 1200*790*95 | 420 | 29 |
| 250*1200(fixed plate) | 1255*700*95 | 375 | 30 |
| 150*250(swing plate) | 445*250*40 | 25 | 9 |
| 150*250(fixed plate) | 425*300*40 | 25 | 8 |
| 250*400(swing plate) | 725*400*60 | 100 | 10 |
| 250*400(fixed plate) | 635*460*70 | 80 | 11 |
| 400*600(swing plate) | 1000*600*75 | 228 | 11 |
| 400*600(fixed plate) | 960*660*75 | 216 | 12 |
| 500*750(swing plate) | 1330*750*130 | 540 | 8 |
| 500*750(fixed plate) | 1170*820*110 | 780 | 7 |
| 600*900(fixed plate) | 1240*960*150 | 735 | 9 or12 |
