Roller Mill Ore Grinding Mill High Pressure Centrifugal Superfine Mill Small Noise
Roller Mill Ore Grinding Mill Small Noise High Pressure Centrifugal Superfine Mill

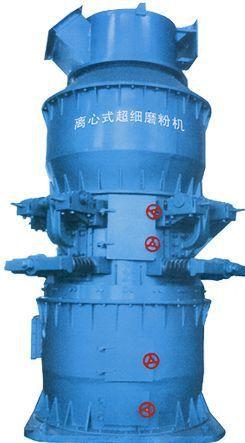

1. Introduction of centrifugal superfine mill of Ore Grinding Mill
Centrifugal superfine mill (superfine mill for short) is a new generation of superfine mill equipment developed by our factory on the basis of advanced powder making equipment at home and abroad. Can replace Raymond mill, smooth production of ultrafine powder, fineness can be adjusted between 80 mesh -1500 mesh.
2. Characteristics of centrifugal superfine mill of Ore Grinding Mill
(1) Small noise, small vibration;
(2) high pressure, much fine powder;
(3) Uniform wear of ring and roller, long service life, 3-5 times of ordinary Raymond mill;
(4) Suitable for hard material processing;
(5) The iron content of micro powder is low;
(6) Can operate continuously, during the operation does not affect the roller bearing room oil filling;
(7) Small power consumption, high efficiency, convenient installation and maintenance;
(8) There is no scraper feeding in the mill, and the failure rate is low.
3. Centrifugal superfine mill scope of application:
Centrifugal ultrafine mill is mainly suitable for barite, calcite, limestone, kaolin, bentonite, marble, gypsum, refractories, quartz stone, glass, ceramics and other minerals whose hardness is not greater than 9.3, humidity below 6% of the high fine powder processing, particle size between 80 mesh -1500 mesh arbitrary adjustment.
4. Technical parameters of centrifugal superfine mill:
| Technical parameters/Model | LXM820 | LXM1120 | LXM1300 | LXM1550 | LXM1700 | LXM1900 | LXM2200 | LXM2300 |
|
Mill in diameter (mm) |
820 | 1120 | 1300 | 1550 | 1700 | 1900 | 2200 | 2300 |
| Production capacity(t/h) | 1~5 | 6~10 | 16~20 | 22~28 | 30~38 | 36~43 | 70~90 | 95~115 |
|
Particle size of grinding material (mm) |
0~25 | 0~30 | 0~35 | 0~45 | 0~50 | 0~55 | 0~60 | 0~65 |
| product moisture(%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Main motor power(kw) | 55 | 110 | 220 | 315 | 400 | 500 | 710 | 800 |
| Device weight(t) | 16 | 27 | 45 | 75 | 90 | 115 | 160 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
