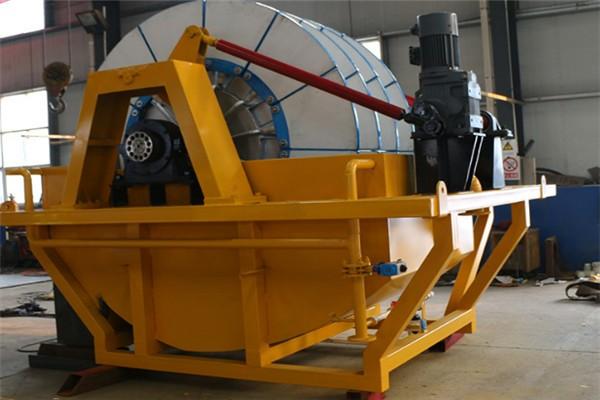

PG/GPY Disc Filter Fan Plate Castings And Forgings For Washing Screening Equipment

1. Product introduction of fan plate castings and forgings

Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.

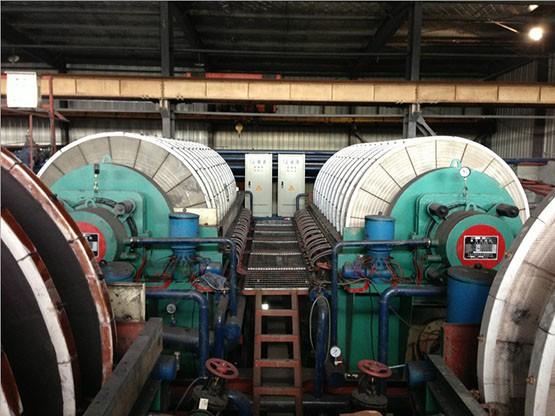

2. Working principle of disc filter

Disc filter mainly by vacuum pump under the action of forming force difference, the formation of particles on the filter cloth filter cake, and through the filter cake and filter cloth exclude liquid phase, solid-liquid separation, used for 0-0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical, petrochemical, sewage treatment solid-liquid separation.

3. Table of related accessories of disc filter castings and forgings

(1) Cylinder body

Inner filter cylinder, outer filter cylinder, folding cylinder

(2) Transmission department

Roller, worm gear, worm gear, reducer,

(3) Filtration section

Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc

4. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings

(1) Product parameters of fan plate for PG series disc vacuum filter castings and forgings

(2) Product parameters of GPY series disc vacuum filter castings and forgings
