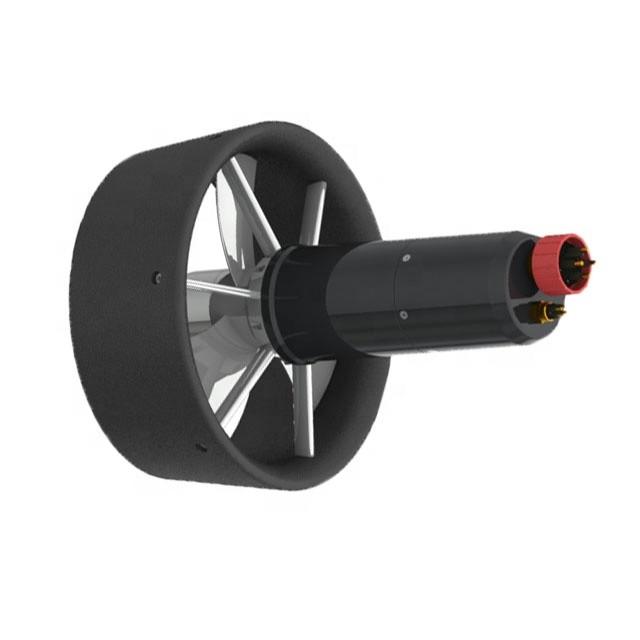

ROV / AUV 1400 RPM 6.5KW Underwater Brushless DC Motor
|
Working life
|
1,000+ Hours
|
Voltage
|
260VDC 300VDC 330VDC
|
|
Power
|
6.5KW
|
Application
|
ROV/AUV/ Submersible
|
|
Max RPM
|
1600
|
Thrust
|
130kg forward; 70kg reverse
|
|
Nozzle
|
black
|
Propeller handing
|
left &right
|
|
Material of propeller
|
SS
|
Housing
|
Aluminum alloy & Titanium alloy
|
|
Seal
|
Leakless, magnetically coupled
|
Depth rating
|
0-850/1500/3000/6000m/full ocean depth
|
|
Signal power
|
none
|
Control made
|
analog voltage control(0V~+5V forward,0V~-5V reverse); CAN
|
Specifications
1. Service depth>1500m,oil filled seal
2. The thruster applies advanced magnetically coupled drive technology, all electronic components are included in sealed cabin to reduce risk of leakage
3. power isolation; over current protection; over temperature protection; rotary locking protection for built in driver
4. a ramp linear processing is performed on the control signal
connector--driver--motor--reducer--magnetically coupled drive technology--propeller--nozzle
1. Warranty time is one year
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. Supporting factory visiting and production inspection
5. Before delivery, we will testing products to ensure its stable performance
