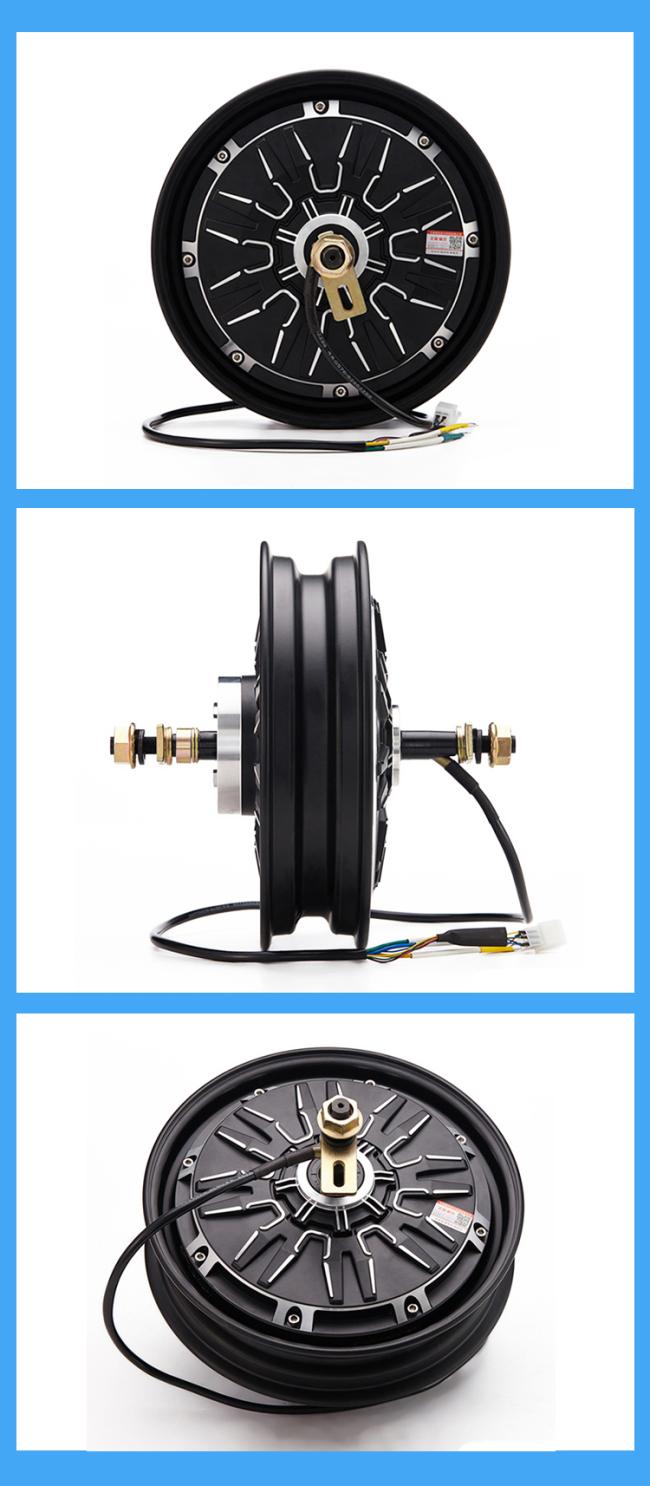

10 Inch Water Cooled Brushless DC Motor
10 Inch Water Cooled Brushless DC Motor
|
Motor Type |
Brushless Direct Current Motor(BLDC Motor) |
|
Axle Configuration |
Double |
|
Wheel Rim |
10 inch |
|
Rated Speed |
40km/h |
|
Voltage |
60V |
|
Magnet Height |
27mm |
|
RPM |
450-500 |
|
Brake System |
Drum Brake/Disc Brake |
|
Hall Sensors |
1/2 |
|
Hall Sensor Phasing |
120° |
|
Number of motor phases |
3 |
|
Max Efficiency |
93% |
|
Rated Out Power |
500w |
|
Number of Pole Pairs |
26 |
|
Cross Section of Phase Wire |
2.5 square |
|
Waterproof Grade |
IP54 |
|
Color |
Black/white etc. |
|
Package |
Carton |
Notice:
Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.
