Water Soluble Film Small Sachets Powder Packing Machine

Price Negotiable

Price: Negotiation

MOQ: 1 Set

Delivery Time: 15-20 Days

Brand: OEM

Product Description

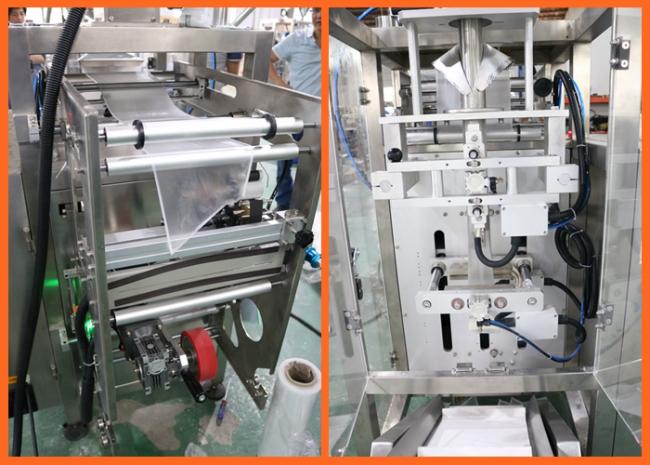

Water Soluble Film Small Sachets Powder Packing Machine

Application

This packing machine is New Design special for the Water soluble film packing machine ,widely used to pack powder products,chemical and medical powder products etc.

Technical characteristics

1: PLC control the machine and most of operate bycolor touch screen. bag-making, measuring, filling, printing,cutting , all in one.

2: Film-Running by servo motor and double belt, bag is formed in good shape.

Main Features:

Stainless Steel construction (SS304)
PLC Servo and Pneumatic control system
Intuitive operation and easy to use software through a SIEMES /SCHNIDER Brand Color Touchscreen HMI
SIEMESN OR SCHNIDER Brand PLC
Film tracking byhigh precision photo sensor

Parameters

Packing Speed	5-50 Bags/Min
Volume	800ML
Bag Width	20 -150 mm
Bag Length	80 – 240mm
Bag Type	Pillow Bag/Center seal
Packaging Film Max Width	320MM
Packaging Film Thickness	0.04-0.09MM
Packaging Film Material	Water-Soluble Film
Weight	350KG
Air Consumption	0.5m³/Min
Air Pressure	6-8 Kg/m
Power Supply	220VAC/50-60Hz
Power	2.2Kw
Dimension LxWxH	(L)1170x(W)820x(H)1285MM
