Steel Scaffolding Jack Base Screw Scaffolding U Head Jack Steel Formwork

◆Product Overview

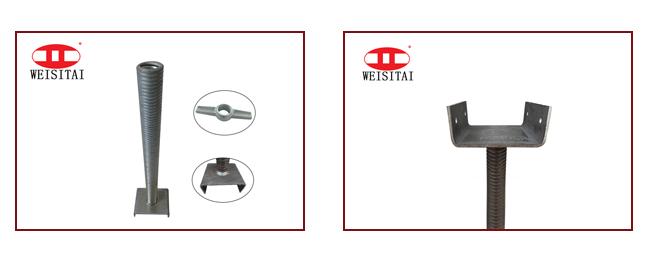

U-Heads Jacks scaffolding are designed to be used in conjunction with Adjustable System Scaffolding. The main function of a U-Head is to hold timber beams in securely in place.

These Adjustable U-Heads are manufactured as per the exact details provided by the esteemed customers. Our product range is highly demanded in the market for its effective usage in commercial as well as engineering industries.

◆Product Parameter

Adjustable U Head
Picture	Tube diameter	30/32/34/38mm etc, Customized Diameter is OK
	Tube Length	400/600mm etc, Customized Length is OK
	U Plate Size	120*120*50*4mm 120*120*50*5mm 150*150*50*4mm 150*150*50*5mm etc, Customized Size is OK
	Jack Nut	Various Shape and weight are available
	Type	Hollow or solid
	Application	U Heads are used in conjunction with either Adjustable Steel Props or System Scaffolding to hold timer beams and formwork accessories in place

◆Product Advantage

A.Safe: with various size, our jack base could load from 8-23tons and even more

B.One-stop: there are all related parts in our factory

C.Various mateiral : Q235,Q345,20# etc, from expensive material to cheap material

D.Customized: Special Size or shape are available
