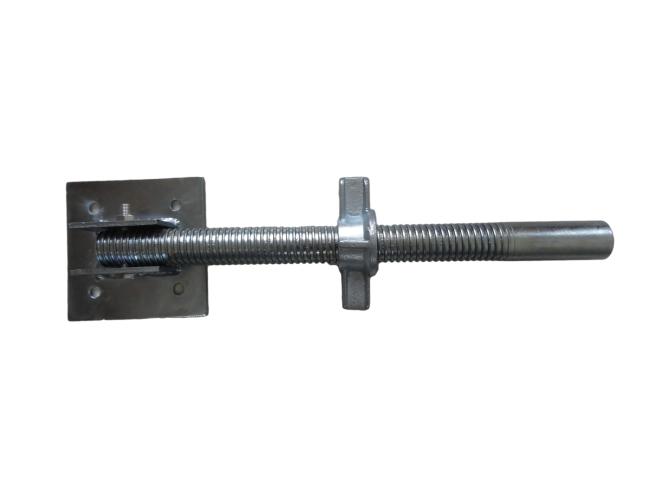

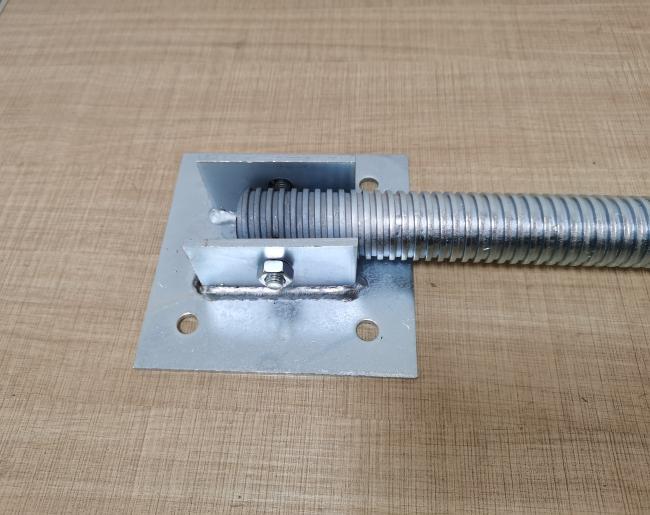

Steel Galvanized Hollow Or Solid Swivel Scaffolding Jack Base
Scaffolding Galvanized Swivel Jacks Scaffolding Jack Base Hollow Jack Base
◆Product Overview
Jack base are used in conjunction with either adjustable steel props or system scaffolding to hold timer beams and formwotk accessories in place.
Scaffolding jack base locates in the bottom of the standards, can provide adjustment for variations in ground levels, it can be used with most types of system scaffolding.
With various size, its compressive strength is from 85.87KN to 236.1KN. Also different surface treatment(self color, painted, electro galvanzied, HDG)and color are available.
◆Product Parameter
| Leading Screw | Base Plate | Nut | Weight | Surface Treatment |
| 30mm*600mm | 120mm*120mm*4mm/5mm | 0.25kg | 3.602kg/3.715kg | Paiting or Galvanized |
| 32mm*600mm | 120mm*120mm*4mm/5mm | 0.30kg | 4.082kg/4.195kg | Paiting or Galvanized |
| 34mm*600mm | 120mm*120mm*5mm | 0.40kg | 4.755kg | Paiting or Galvanized |
| 30mm*400mm | 120mm*120mm*4mm/5mm | 0.25kg | 2.636kg/2.749kg | Paiting or Galvanized |
| 32mm*400mm | 120mm*120mm*4mm/5mm | 0.30kg | 2.973kg/3.086kg | Paiting or Galvanized |
| 34mm*400mm | 120mm*120mm*5mm | 0.40kg | 3.492kg | Paiting or Galvanized |
◆Product Advantage
A.Adjustable: the length could be from 100-1000MM
B.Various mateiral : Q235,Q345,20# etc, from expensive material to cheap material
C.Customized: Special Size or shape are available
D.Safe: with various size, our jack base could load from 8-23tons and even more
E.We can produce the sizes as per your drawing
